Overview - Spring Mat

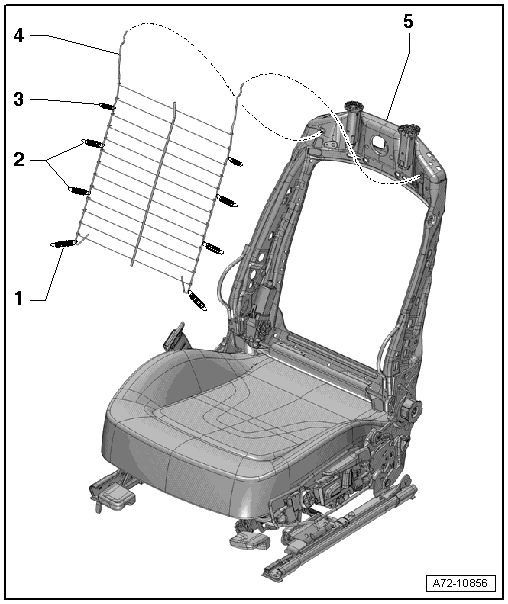

Fig 1: Exploded View Of Spring Mat
GWWA72-10856Courtesy of AUDI OF AMERICA, LLC
  1. Bottom Spring
    • Not available individually
  2. Center Spring
    • Not available individually
  3. Top Spring
    • Not available individually
  4. Spring Mat
  5. Backrest Frame
