Overview - Memory Seat/Steering Column Adjustment Control Module

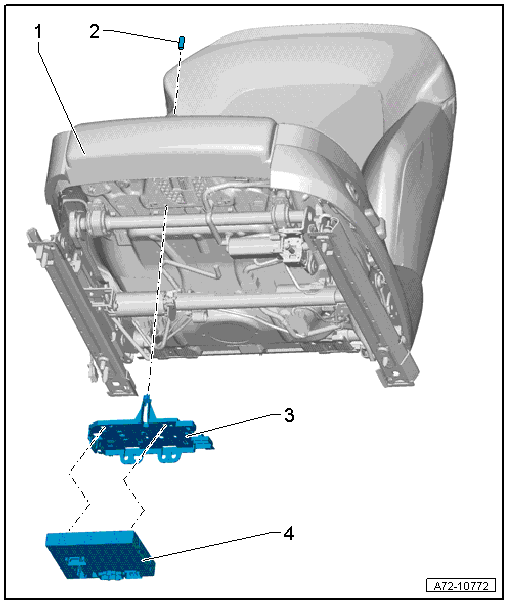

Fig 1: Exploded View Of Front Seat Adjustment Control Module Assembly

Courtesy of AUDI OF AMERICA, LLC

1. Front Seat
2. Pin
   • For securing the bracket to the seat pan
   • To remove the bracket -item  ) OVERVIEW - MEMORY SEAT/STEERING COLUMN ADJUSTMENT CONTROL MODULE - Bracket, press the pin toward the upholstery
3. Bracket
   • Removing and installing. Refer to MEMORY SEAT/STEERING COLUMN ADJUSTMENT CONTROL MODULE BRACKET, REMOVING AND INSTALLING .
   • Engaged and clipped in the seat pan
4. Memory Seat/Steering Column Adjustment Control Module
   • Driver side: Memory Seat/Steering Column Adjustment Control Module -J136-
   • Front passenger side: Front Passenger Memory Seat Control Module -J521-
   • Versions with driver side seat heating or comfort seat: Left Front Seat Ventilation Control Module -J800- (integrated seat heating function)
   • Versions with front passenger side seat heating or comfort seat: Right Front Seat Ventilation Control Module -J799- (integrated seat heating function)
   • Clipped with the bracket
   • Removing and installing. Refer to MEMORY SEAT/STEERING COLUMN ADJUSTMENT CONTROL MODULE, REMOVING AND INSTALLING .
