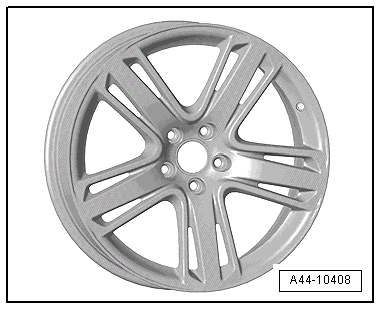

Rims - 9 J X 19
NOTE:
The part number and illustration of the following rims are examples. Refer to the "Parts Information"." for assistance to order the correct rims.
Pay attention when installing Audi original accessories-wheels to the notes in the "Parts Information".".
| Tightening Specification | Wheel Bolts | Hole Circle in mm | Wheel Hub in mm |
|---|---|---|---|
| 120 Nm | 5 | 112 | 66.5 |
| 8T0 601 025 AS | |
| Aluminum rim, PR number | CR6 |
| Dimension: | 9J x 19 H2 |
| Offset in mm: | 24 |
| Wheel load in kg: | 650 |
| 8T0 601 025 BG | |
| Aluminum rim, PR number | C5H |
| Dimension: | 9J x 19 H2 |
| Offset in mm: | 24 |
| Wheel load in kg: | 650 |
