Rims - 8 J X 18

NOTE:

The part number and illustration of the following rims are examples. Refer to the "Parts Information"." for assistance to order the correct rims.

Pay attention when installing Audi original accessories-wheels to the notes in the "Parts Information".".

Tightening Specification	Wheel Bolts	Hole Circle in mm	Wheel Hub in mm
120 Nm	5	112	66.5

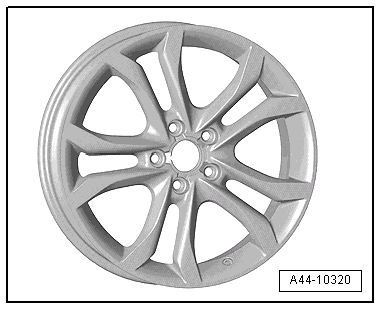

Fig 1: Aluminum Rim 4E0 601 025 BD

Courtesy of AUDI OF AMERICA, LLC

8T0 601 025 A
Winter aluminum rim, PR number	2WX / 7DJ
Dimension:	8 J x 18 H2
Offset in mm:	31
Wheel load in kg:	650
