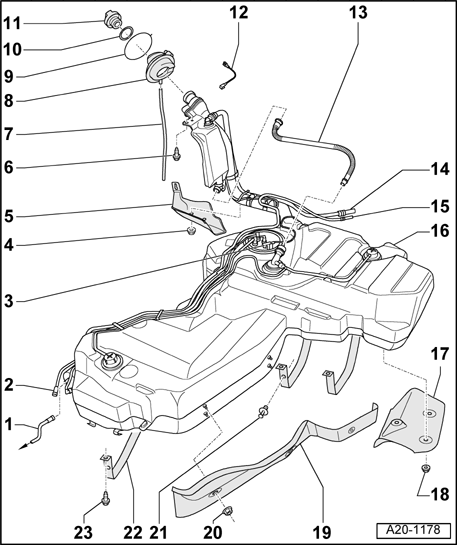

Fuel tank with attachments, assembly overview: Notes
1 - Fuel line
- From fuel filter
- To engine
- Do not kink
- To disconnect, press release button on connection piece
2 - Ventilation line
- From EVAP canister to Evaporative Emission (EVAP) Canister Purge Regulator Valve N80
- Do not kink
- To disconnect, press release button on connection piece
- Clipped in on fuel tank
3 - Electrical harness connector
- For Fuel Tank Lock Switch F314
- Checking electrical → Fuel Tank Lock Switch F314 , checking
4 - 2 Nm
5 - Heat shield
- For fuel delivery connection
6 - 23 Nm
7 - Overflow hose
- Engage in wheelhousing
8 - Rubber pan
9 - Circlip
10 - Oil seal
- Replace if damaged
11 - Cap
12 - Ground (GND) connection
- For discharging electrostatic charge
- Installed position/check requirements Installation position of Ground (GND) connection
- After installing, check electrical connection of metal ring at fuel filler tube to a bare area of chassis using Ohm meter - Specified value: approx. 0Ω
13 - Ventilation line
14 - Ventilation line
- From gravity valve to EVAP canister
- To remove, press release ring on EVAP canister
15 - Ventilation line
- From EVAP canister to Evaporative Emission (EVAP) Canister Purge Regulator Valve N80
- To remove, press release ring on EVAP canister
- Clipped in on fuel tank
16 - Fuel tank
- Removing and installing → Fuel tank with attachments, removing and installing
17 - Heat shield
- For fuel tank
18 - 2 Nm
19 - Heat shield
- For fuel tank
20 - 2 Nm
21 - Spreader clip
22 - Securing strap
- Observe varying lengths
23 - 23 Nm
