Rear Shelf Trim and Spacer, Removing and Installing

Removing spacing device

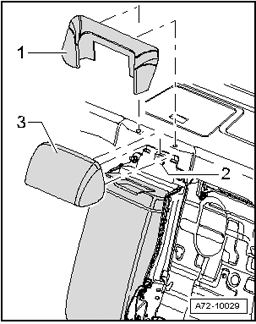

Fig 1: Rear Shelf Trim Panel, Bracket & Spacing Device

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Push out spacing device - 3  - upward out of bracket - 2  -.

Removing rear shelf trim panel

Fig 2: Rear Shelf Trim Panel, Bracket & Spacing Device

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Spacing device - 3  - removed.

• Unclip rear shelf trim panel - 1  -.
