Footrest, Removing and Installing

Special tools, testers and auxiliary items required

Fig 1: Torque Wrench V.A.G 1783

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Torque wrench V.A.G 1783

Removing

• Remove lower A-pillar trim → Lower A-Pillar Trim, Removing and Installing .

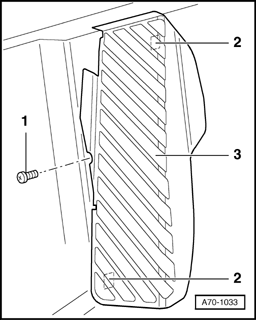

Fig 2: Foot Rest, Clips & Foot Rest

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Remove screw - 1  -.

• Tightening torque 4 Nm.

• Unclip foot rest - 3  - from clips - 2  - (2x).

Installing

• Install foot rest - 1  - in reverse order of removal.
