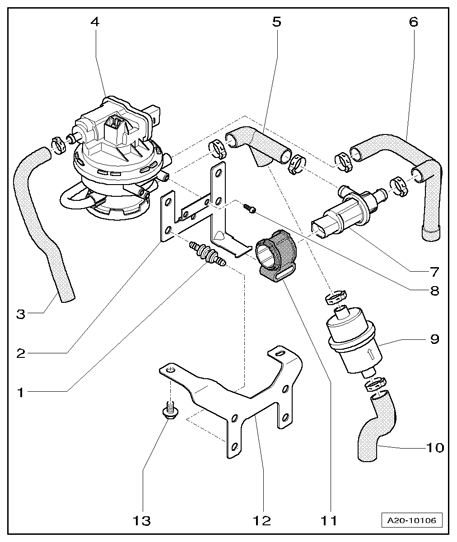

Leak Detection Pump (LDP) V144 , assembly overview

1 - Retaining pin

2 - Bracket for leak detection pump

3 - Vacuum line

• To front intake pipe

4 - Leak detection pump (LDP) V144

• Component location: In left rear wheel housing behind wheel housing liner
• Check using "Guided Fault Finding"
• Removing and installing → Leak Detection Pump (LDP) V144 , removing and installing

5 - Angled hose with junction

6 - Angled hose with junction

• To EVAP canister

7 - Evaporative emission (EVAP) canister purge solenoid valve N115

• Check using "Guided Fault Finding"
• Removing and installing → Evaporative Emission (EVAP) Canister Purge Solenoid Valve N115 , removing and installing

8 - 1.2 Nm

9 - Air filter for diagnosis pump

10 - Hose

11 - Support

• For Evaporative Emission (EVAP) Canister Purge Solenoid Valve N115

12 - Bracket

• On body

13 - 9 Nm
