Left fuel delivery unit with Transfer Fuel Pump (FP) G6 , removing and installing: Removing

Observe safety precautions → Safety precautions .

Observe rules for cleanliness → Rules for cleanliness .

CAUTION:
  • To remove the fuel delivery unit, the fuel tank may only be filled to a maximum of 1 /3 . Empty fuel tank if necessary. Procedure → Fuel tank, emptying .
CAUTION: Observe safety precautions when disconnecting the battery → 27 - BATTERY, STARTER, GENERATOR, CRUISE CONTROL .
Fig 1: Removing Cover Of Right Luggage Compartment Side Trim
GW00028632Courtesy of VOLKSWAGEN UNITED STATES, INC.
Fig 2: Removing Cover Above Battery
GW00028633Courtesy of VOLKSWAGEN UNITED STATES, INC.
NOTE:
  • Ignore - 2  -.
Fig 3: Disconnecting Battery Ground (GND) Strap
GW00028634Courtesy of VOLKSWAGEN UNITED STATES, INC.
Fig 4: Removing/Installing Cover For Left Locking Flange
GW00028635Courtesy of VOLKSWAGEN UNITED STATES, INC.
NOTE:
  • To remove and install fuel delivery unit, remove vehicle tool kit and spare wheel from luggage compartment. It is then possible to sit or kneel in spare wheel well.
Fig 5: Disconnecting/Connecting Electrical Connectors At Left Locking Flange
GW00028636Courtesy of VOLKSWAGEN UNITED STATES, INC.
Fig 6: Removing/Installing Locking Ring Using Wrench T10202
GW00018589Courtesy of VOLKSWAGEN UNITED STATES, INC.
Fig 7: Disconnecting/Connecting Electrical Connectors On Underside Of Left Locking Flange
GW00028664Courtesy of VOLKSWAGEN UNITED STATES, INC.
Fig 8: Removing/Installing Cover For Right Locking Flange
GW00028637Courtesy of VOLKSWAGEN UNITED STATES, INC.
Fig 9: Disconnecting/Connecting Electrical Connectors At Right Locking Flange
GW00028638Courtesy of VOLKSWAGEN UNITED STATES, INC.
Fig 10: Identifying Fuel Return Line & Fuel Supply Line
GW00028639Courtesy of VOLKSWAGEN UNITED STATES, INC.
CAUTION: Fuel system is under pressure! Before opening system, place clean rags around the connection. Then release pressure by carefully loosening connection.
Fig 11: Removing/Installing Locking Ring Using Wrench T10202
GW00018589Courtesy of VOLKSWAGEN UNITED STATES, INC.
Fig 12: Disconnecting/Connecting Electrical Connectors On Underside Of Right Locking Flange
GW00028665Courtesy of VOLKSWAGEN UNITED STATES, INC.
NOTE:
  • To separate the line couplings that are mentioned later in the description, pull the fuel lines out of the fuel tank opening.
  • To improve clarity, the following illustration shows several components not installed.
Fig 13: Identifying Fuel Lines & Right Fuel Delivery Unit With Fuel Pump (FP) G23
GW00028666Courtesy of VOLKSWAGEN UNITED STATES, INC.

3 - Right fuel delivery unit with Fuel Pump (FP) G23

Fig 14: Inserting Fuel Delivery Line And Fuel Level Sensor 3 G237 Until It Engages Audibly
GW00028667Courtesy of VOLKSWAGEN UNITED STATES, INC.

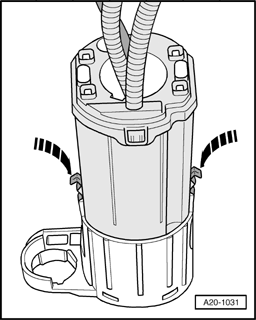

Fig 15: Pressing Down Both Retaining Clasps On Fuel Delivery Unit Support
GW00028668Courtesy of VOLKSWAGEN UNITED STATES, INC.
NOTE:
  • Be aware that fuel is still in fuel delivery unit.
