Rear Bench Seat Cover, Separating from Upholstery

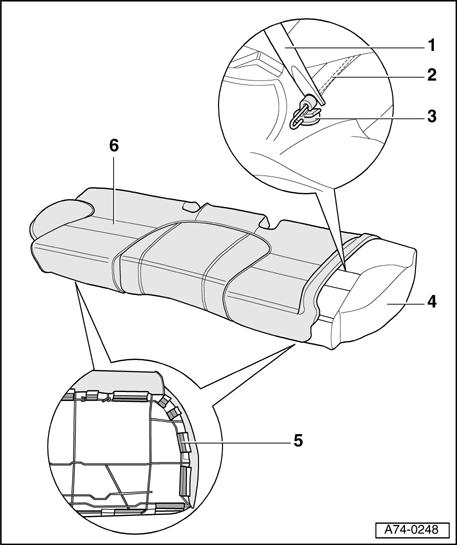

Fig 1: Rear Bench Seat Cover, Separating From Upholstery

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Awl V.A.G 1636 A

2 - Retainer

3 - Plastic clips

4 - Upholstery

5 - Peripheral fastening strips

6 - Cover

• Removing

• Using an awl V.A.G 1636 A - 1  -, pry the bracket - 2  - out of the plastic clips - 3  -.
• Remove cover - 6  - from upholstery - 4  -.

• Installing

• Replaced damaged plastic clips.
• First press retainers of cross braces into plastic clips.
• Install cover in reverse order of removal.
