Seat Side Trim Bracket, Removing and Installing

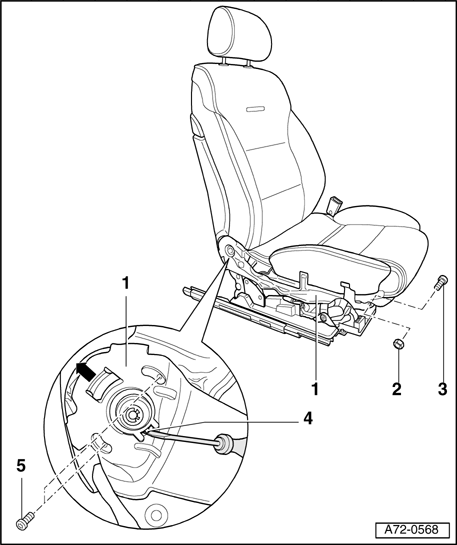

Fig 1: Seat Side Trim Bracket, Removing And Installing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Bracket for seat side panel

• Removing

• Remove seat → Seat, Removing and Installing .
• Mount the fixture for seat repair VAS 6136 on the engine and transmission holder VAS 6095.
• Attach the front seat to the fixture for seat repair VAS 6136.
• Remove seat side trim on sill side → Side Trim, Sill Side, Removing and Installing .

• Remove seat side trim on tunnel side → Side Trim, Tunnel Side, Removing and Installing  and → Side Trim, Tunnel Side, Removing and Installing .
• Remove front trim → Front Trim, Removing and Installing .
• Remove nuts - 2  - (qty. 2).
• Remove bolts - 3  - (2x).

• Remove bolts - 5  - (qty. 2).
• Using a screwdriver, push lug - 4  - in and disengage bracket - 1  - in direction of arrow.
• In the same way, disengage bracket - 1  - on opposite side and remove bracket - 1  -.

• Installing

• Install bracket for seat side trim - 1  - in reverse order of removal.

2 - Nuts (qty. 2)

3 - Screws, (qty. 2)

4 - Tabs (qty. 2)

5 - Screws (qty. 4)
