Rear Panel Trim, Removing and Installing

Special tools, testers and auxiliary items required

• Trim removal wedge 3409

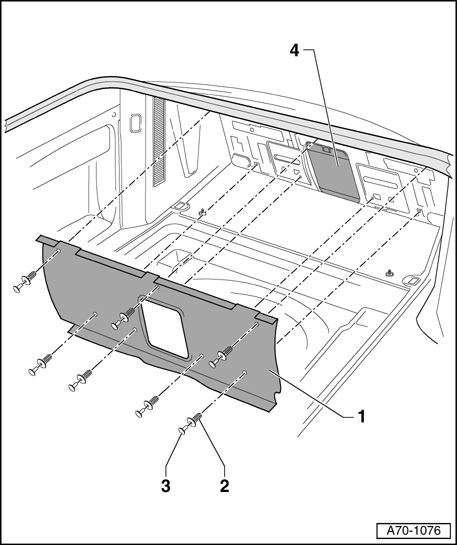

1 - Rear panel trim

• Removing

• Remove luggage compartment floor mat → Luggage Compartment Liner, Removing and Installing .
• Remove lower rear shelf trim → Lower Rear Shelf Trim, Removing and Installing .
• Pry out upper part - 3  - of spreader clips - 2  - (7x) using a flat-head screwdriver.
• Remove spreader clips - 2  - (7x).

• Pull rear panel trim - 1  - out from under ski bag frame - 4  -.
• Remove rear panel trim.

• Installing

Installation is reverse of removal. Observe the following when doing so:

• Replace damaged spreader clips - 2  - and upper parts - 3  -.
• To begin the installation, clip in rear panel trim under the ski bag frame. If necessary, use trim removal wedge 3409.
• Make sure there are no creases on the rear panel trim.

2 - Spreader clips (7x)

• Replace if damaged

3 - Upper part (7x)

• For spreader clip - 2  -
• Replace if damaged

4 - Ski bag
