Rear Lid Lock Button, Removing and Installing

Removing

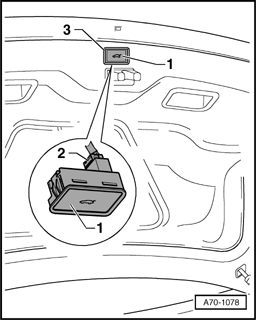

Fig 1: Rear Lid Lock Button (In Luggage Compartment) E406, Electrical Connector & Frame

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Carefully pry Rear Lid Lock Button (in luggage compartment) E406 - 1  - out of frame - 3  - using a dull flat-head screwdriver. To pry out, place flat-head screwdriver on the short side of the rear lid lock button.
• Pull out rear lid lock button from rear lid trim.
• Disconnect electrical connector - 2  -.

Installing

Installation is reverse of removal.
