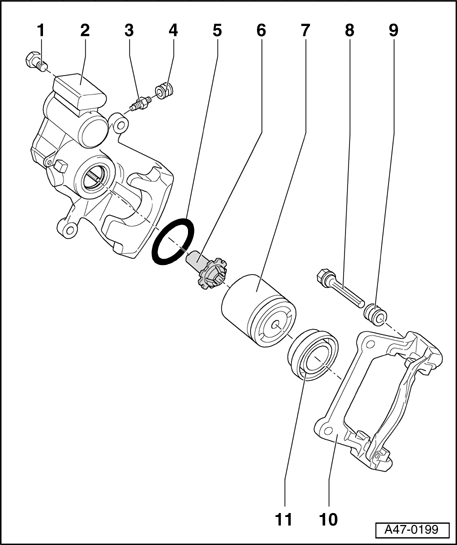

Brake caliper, servicing
NOTE:
- When servicing, completely install repair kit.
- Apply thin coat of assembly paste to brake cylinders, pistons and seals.
1 - Self-locking bolt
- Torque specification, 35 Nm
- Always replace
- When loosening and tightening, counter-hold at guide pin
2 - Brake caliper housing with actuator
- Brake caliper is not designed to be disconnected from actuator
- Pre-bleed caliper housing after repairing → Bleeding braking system
3 - Bleeder screw
4 - Dust cap
- Push onto bleed valve
5 - Sealing ring
- Removing and installing → Rear brake caliper piston, removing and installing
6 - Pressure nut
- To operate parking brake
7 - Pistons
- Removing and installing → Rear brake caliper piston, removing and installing
8 - Guide pins
- Grease before pulling on protective cap
9 - Protective cap
- Pull onto brake carrier and guide pin
10 - Brake carrier with guide pins and protective cap
- Supplied as pre-assembled replacement part with sufficient grease on guide pins
- If protective caps or guide pins are damaged, install repair kit. Use supplied grease packet to lubricate guide pins.
11 - Protective cap
- Removing and installing → Rear brake caliper piston, removing and installing
- Pull onto piston with outer sealing lip
