Line routing

Brakes and brake lines are delivered as ready-to-install replacement parts.

Secure brakes and brake lines at original fastening points when installing.

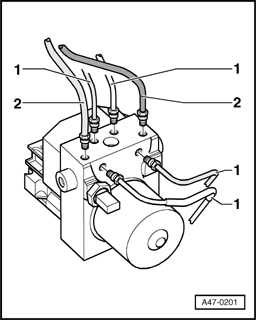

Lines to hydraulic assembly

• Item - 1  - hex bolt ( M10 and M12 dia. 5 mm brake lines), 12 Nm tightening torque
• Item - 2  - Hex bolt ( M14 dia.8 mm brake lines), 12 Nm tightening torque

Brake line routing to front axle

• Item - 1  - hex bolt, 25 Nm tightening torque
• Item - 2  - brake hose bracket
• Item - 3  - retaining spring
• Item - 4  - brake line, 14 Nm tightening torque

• Item - 5  - brake hose, ensure retaining tabs are seated correctly in bracket.

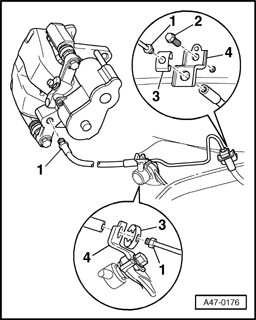

Brake line routing to rear axle

• Item - 1  - brake line, 14 Nm tightening torque
• Item - 2  - hex bolt, 10 Nm tightening torque
• Item - 3  - retaining spring
• Item - 4  - brake hose bracket

• Item - 1  - brake line, 14 Nm tightening torque
• Item - 2  - brake hose
• Item - 3  - retaining spring
• Item - 4  - brake hose bracket
