Parking Aid, Component Overview

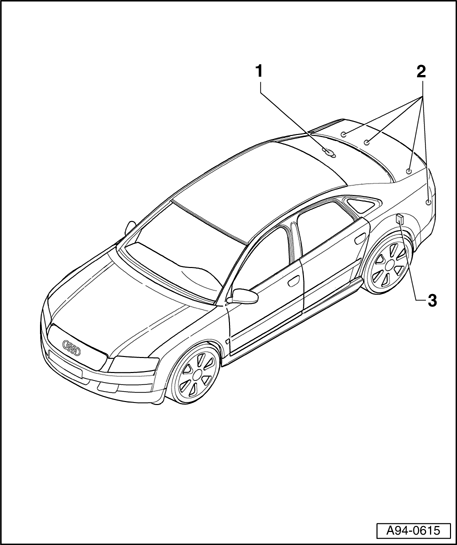

Fig 1: Parking Aid, Component Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Parking Aid Control Module J446

• At rear left of luggage compartment at wheel housing
• Removing and installing → Parking Aid Control Module, Removing and Installing

2 - Sensor for parking aid

• In rear bumper
• Removing and installing → Rear Parking Aid Sensors, Removing and Installing

3 - Rear Parking Aid Warning Buzzer H15

• Below rear shelf
• Removing and installing → Rear Parking Aid Warning Buzzer, Removing and Installing
