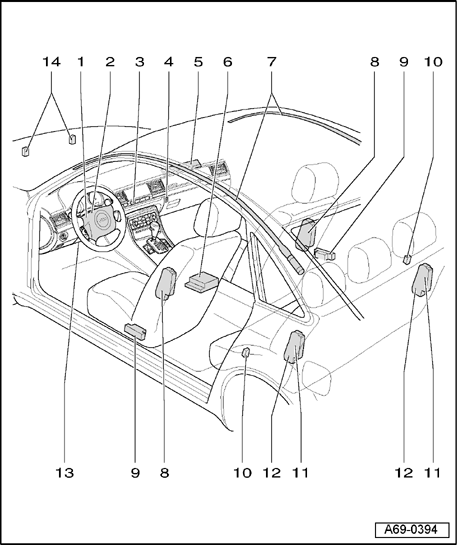

Airbag System, Component Overview

1 - Driver airbag unit

• Removing and Installing → Driver Airbag, Removing and Installing

2 - Coil connector with slip ring

• Removing and installing → Airbag Spiral Spring/Return Spring With Slip Ring, Removing and Installing .

3 - "PASSENGER AIRBAG OFF" light

• Removing and installing → Front Passenger Airbag Disabled Indicator Lamp, Removing and Installing

4 - Key switch for passenger airbag shut-off

• Not applicable for USA/Canada

5 - Front passenger airbag unit

• Removing and installing → Front Passenger Airbag, Removing and Installing
• Locking and activating possible using the key switch.

6 - Airbag Control Module

• Removing and installing → Airbag Control Module, Removing and Installing .

7 - Side Curtain Airbag

• Removing and installing → Side Curtain Airbag, Removing and Installing

8 - Front side airbag

• Removing and installing → Front Side Airbag, Removing and Installing

9 - Front side airbag crash sensor

• Removing and installing → Front Side Airbag Crash Sensor, Removing and Installing

10 - Rear airbag crash sensor (head-level airbag)

• Removing and installing → Rear Side Curtain Airbag Crash Sensor, Removing and Installing

11 - Rear side airbag

• Removing and installing → Rear Side Airbag, Removing and Installing

12 - Rear side-airbag (individual seats)

• Removing and installing → Rear Side Airbag, Individual Power Seats, Removing and Installing

13 - Diagnostic connector

14 - Front airbag crash sensor

• Removing and installing → Front Airbag Crash Sensor, Removing and Installing
