Overview - Inner Tail Lamp

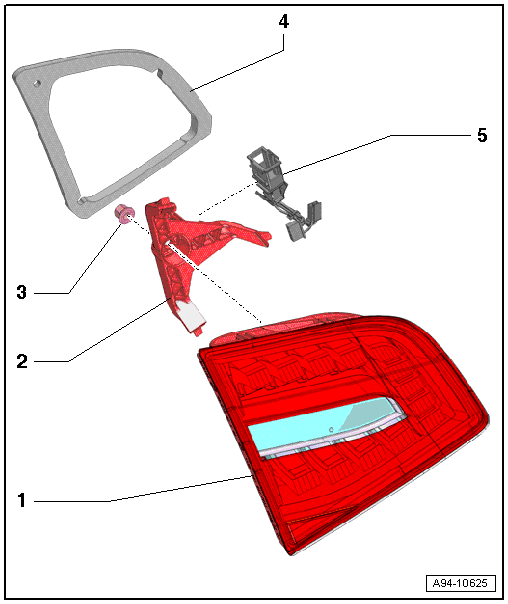

Fig 1: Inner Tail Lamp Components Location
GWWA94-10625Courtesy of AUDI OF AMERICA, LLC
  1. Inner Tail Lamp
  2. Clamping Bracket
    • For securing tail lamp assembly to the rear lid
  3. Cap Nut
    • 3.5 Nm
  4. Gasket
    • Replace if damaged
  5. Central Connector
