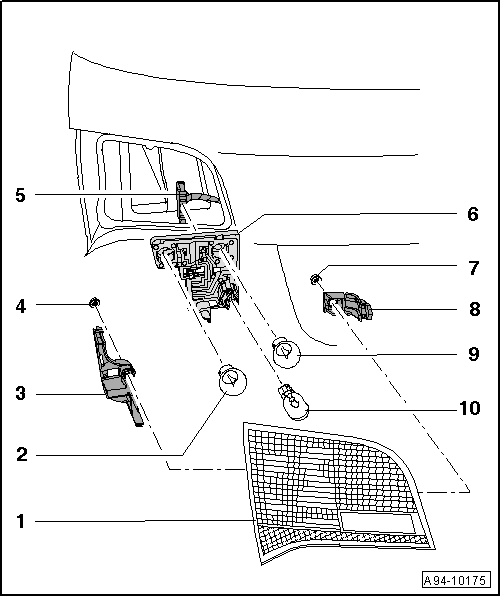

Overview - Inner Basis Rear Lid Lamp
- Housing
- Removing and installing, refer to INNER TAIL LAMPS
- Tail lamp bulb
- Left Tail Lamp -M4-
- Right Tail Lamp -M2-
- 12V, 21 W
- Removing and installing, refer to LEFT/RIGHT BACK-UP LAMP BULB -M16- / -M17-, LEFT/RIGHT REAR FOG LAMP BULB -L46- / -L47-, RIGHT/LEFT TAIL LAMP BULB -M2- / -M4-
- Clamp Mounting
- For securing housing at rear lid
- Nut
- 3.5 Nm
- Electrical Connector
- Lamp Socket
- Removing and installing, refer to LEFT/RIGHT BACK-UP LAMP BULB -M16- / -M17-, LEFT/RIGHT REAR FOG LAMP BULB -L46- / -L47-, RIGHT/LEFT TAIL LAMP BULB -M2- / -M4-
- Nut
- 3.5 Nm
- Clamping Bracket
- For securing bulb socket ad housing at rear lid
- Tail lamp/fog lamp bulb
- Left Tail Lamp -M4-
- Right Tail Lamp -M2-
- Left Rear Fog Lamp -L46-
- Right Rear Fog Lamp -L47-
- 12V, 21 W
- Removing and installing, refer to LEFT/RIGHT BACK-UP LAMP BULB -M16- / -M17-, LEFT/RIGHT REAR FOG LAMP BULB -L46- / -L47-, RIGHT/LEFT TAIL LAMP BULB -M2- / -M4-
- Back-Up Lamp Bulb
- Left Back-Up Lamp -M16-
- Right Back-Up Lamp -M17-
- 12V, 16 W
- Removing and installing, refer to LEFT/RIGHT BACK-UP LAMP BULB -M16- / -M17-, LEFT/RIGHT REAR FOG LAMP BULB -L46- / -L47-, RIGHT/LEFT TAIL LAMP BULB -M2- / -M4-
