Overview - Inner Led Rear Lid Lamp

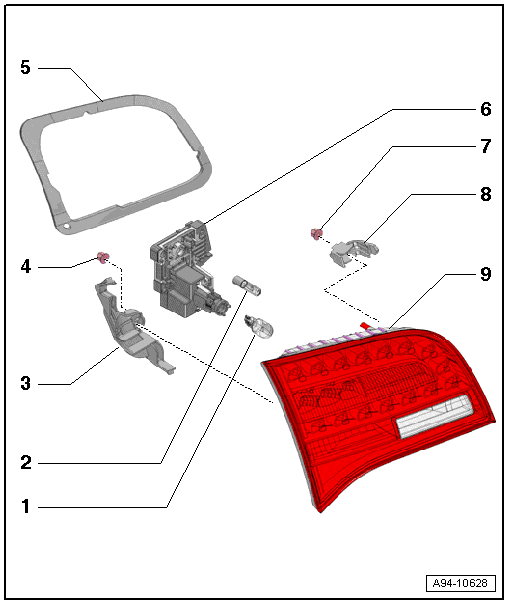

Fig 1: Inner LED Rear Lid Lamp Components Location

Courtesy of AUDI OF AMERICA, LLC

Left Back-Up Light
- Left Back-Up Lamp -M16-
- Right Back-Up Lamp -M17-
- 12V, 16 W
- Removing and installing, refer to BACK-UP LAMP AND REAR FOG LAMP BULBS
Rear Fog Light Bulb
- Left rear fog lamp -L46-
- Right rear fog lamp -L47-
- Halogen 12V, 21 W
- Removing and installing, refer to BACK-UP LAMP AND REAR FOG LAMP BULBS
Clamping Bracket
- For securing the inner tail lamp to the rear lid
Nut
- 3.5 Nm
Gasket
- Replace if damaged
Lamp Socket
- For light bulb for back-up lamp/rear fog lamp
- Removing and installing, refer to BACK-UP LAMP AND REAR FOG LAMP BULBS
Nut
- 3.5 Nm
Clamping Bracket
- For securing bulb socket ad housing at rear lid
Inner Tail Lamp
- Removing and installing, refer to INNER TAIL LAMPS
