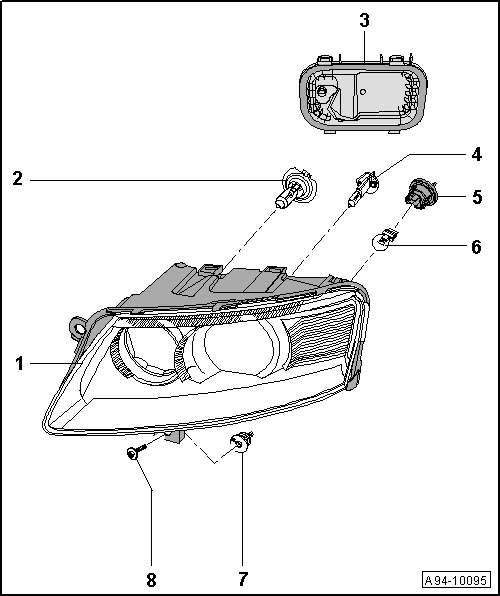

Halogen Headlamps Assembly Overview
NOTE:
Adjust the headlamps after performing any work that could have affected their adjustment. Refer to HEADLAMP, ADJUSTING .
- Headlamp Housing
- Removing and installing after replacing components at front end, refer to HEADLAMP, AFTER REPLACING COMPONENTS AT FRONT END
- Removing and installing when reusing current headlamp, refer to HEADLAMP, WHEN REUSING CURRENT HEADLAMP
- High Beam Headlamp Bulb
- Left High Beam Headlamp -M30-
- Right High Beam Headlamp -M32-
- 12 V, 55 W (H1 - W5W - white)
- Changing bulb, refer to HIGH BEAM HEADLAMP BULBS
- Housing Cover
- Low Beam Headlamp Bulb
- Left Low Beam Headlamp -M29-
- Right Low Beam Headlamp -M31-
- 12 V, 55 W (H7 - W5W - white)
- Changing bulb, refer to LOW BEAM HEADLAMPS
- Lamp Socket
- For light bulb for turn signal
- Front Turn Signal Lamp
- Left Front Turn Signal Lamp -M5-
- Right Front Turn Signal Lamp -M7-
- 12 V, 28/7 W (orange)
- Changing bulb, refer to FRONT TURN SIGNAL LAMP BULBS
- Adjusting Element
- For adjustment of headlamp to bumper contour
- Quantity: 3
- 8 Nm
