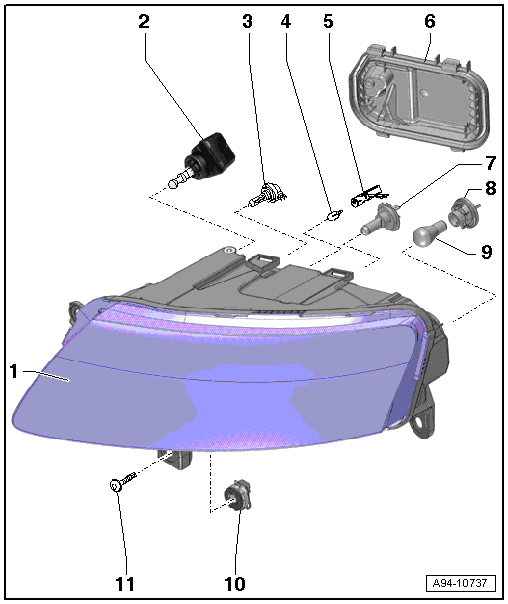

Halogen Headlamps Assembly Overview
NOTE:
Adjust the headlamps after performing any work that could have affected their adjustment. Refer to HEADLAMP, ADJUSTING .
- Headlamp Housing
- Removing and installing, replacing components at front end, refer to HEADLAMP, AFTER REPLACING COMPONENTS AT FRONT END
- Removing and installing when reusing current headlamp, refer to HEADLAMP, WHEN REUSING CURRENT HEADLAMP
- Headlamp Range Control Positioning Motor
- Left Headlamp Beam Adjustment Motor -V48-
- Right Headlamp Beam Adjustment Motor -V49-
- Removing and installing, refer to LEFT/RIGHT HEADLAMP BEAM ADJUSTMENT MOTOR -V48- / -V49-
- Daytime Running Lamps/High Beam Headlamp
- Left High Beam Headlamp -M30-
- Right High Beam Headlamp -M32-
- Left Daytime Running Lamp -L174-
- Right Daytime Running Lamp -L175-
- 12 V, 15/55 W (H15)
- Changing bulb, refer to HIGH BEAM HEADLAMP AND DAYTIME RUNNING LAMP BULB, CHANGING
- Parking Lamp Bulb
- Left Parking Lamp -M1-
- Right Parking Lamp -M3-
- Glass socket lamp 12 V, 5 W (W5W)
- Changing bulb, refer to PARKING LAMPS M1/M3, REPLACING BULBS
- Lamp Socket
- For parking lamp
- Housing Cover
- Low Beam Headlamp Bulb
- Left Low Beam Headlamp -M29-
- Right Low Beam Headlamp -M31-
- 12 V, 55 W (H7 - W5W)
- Changing bulb, refer to LOW BEAM HEADLAMPS
- Lamp Socket
- For the front turn signal lamp
- Front Turn Signal Lamp
- Left Front Turn Signal Lamp -M5-
- Right Front Turn Signal Lamp -M7-
- 12 V, 21 W (PY21W - orange)
- Changing bulb, refer to FRONT TURN SIGNAL LAMP BULBS
- Adjusting Element
- For adjustment of headlamp to bumper contour
- Quantity: 3
- 8 Nm
