Engine, attaching to engine stand

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2004 Audi A6, 2003 Audi S6, 2003 Audi A6, 2002 Audi S6, and 2002 Audi A6. However, it is still accessible from the selected car via links, so may be relevant.

Engine holding fixture VW 540.

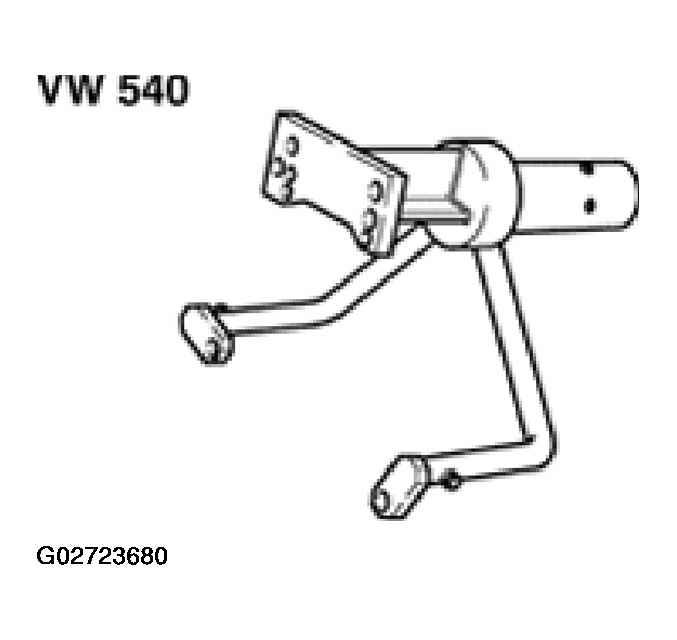

Fig 1: Identifying Engine Holding Fixture VW 540

Courtesy of AUDI OF AMERICA, INC.

Mount engine to engine stand using VW 540/1 holding fixture to repair stand VW 540.

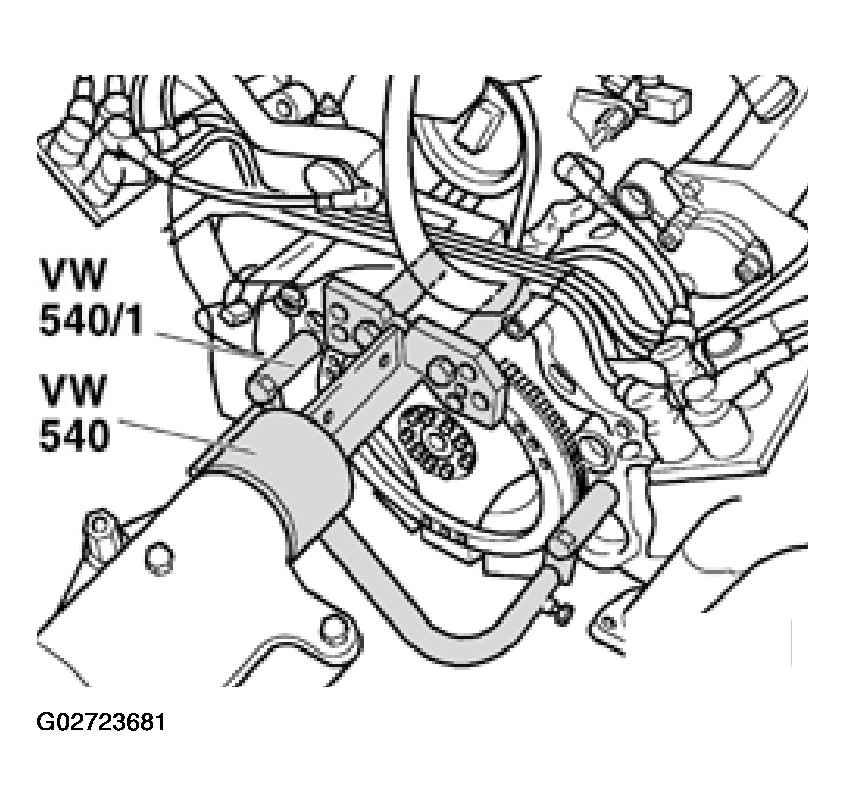

Fig 2: Mounting Engine To Engine Stand Using VW 540/1 Holding Fixture To Repair Stand VW 540

Courtesy of AUDI OF AMERICA, INC.

CAUTION: DO NOT measure cylinder bore dimensions while cylinder block is mounted on the engine stand. The cylinder block is stressed and deformed by its own weight under these conditions and the measurements will not be accurate.
