Oil pump, removing: Installing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2004 Audi A6, 2003 Audi S6, 2003 Audi A6, 2002 Audi S6, and 2002 Audi A6. However, it is still accessible from the selected car via links, so may be relevant.

Install oil pump in reverse order of removal but note the following:

Sealing surface must be free of oil or sealing compound.

Clean sealing surfaces with electric drill and plastic brush insert.

CAUTION: Wear eye protection.

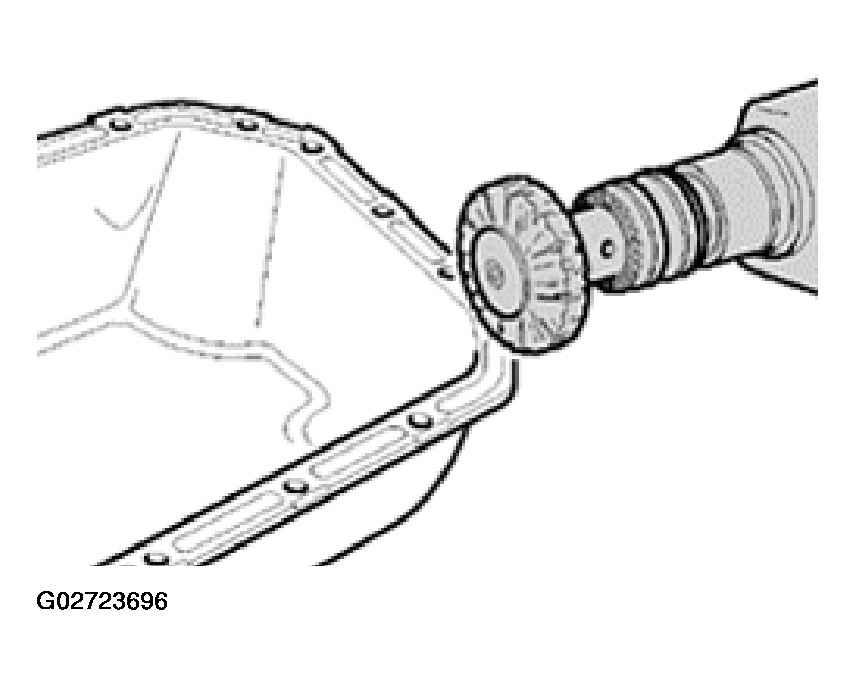

Fig 1: Cleaning Sealing Surfaces With Electric Drill

Courtesy of AUDI OF AMERICA, INC.

NOTE: Oil pan must be installed within 5 minutes of applying silicone sealer D 176 404 A2.

Cut off nozzle of tube at front marking (nozzle dia. approx. 3 mm or 5/16 in.).
- Thickness of sealant bead: 2 to 3 mm (approx. 1/8 in.)

CAUTION: Part numbers are listed for reference only. Always check with your Parts department for the latest information.

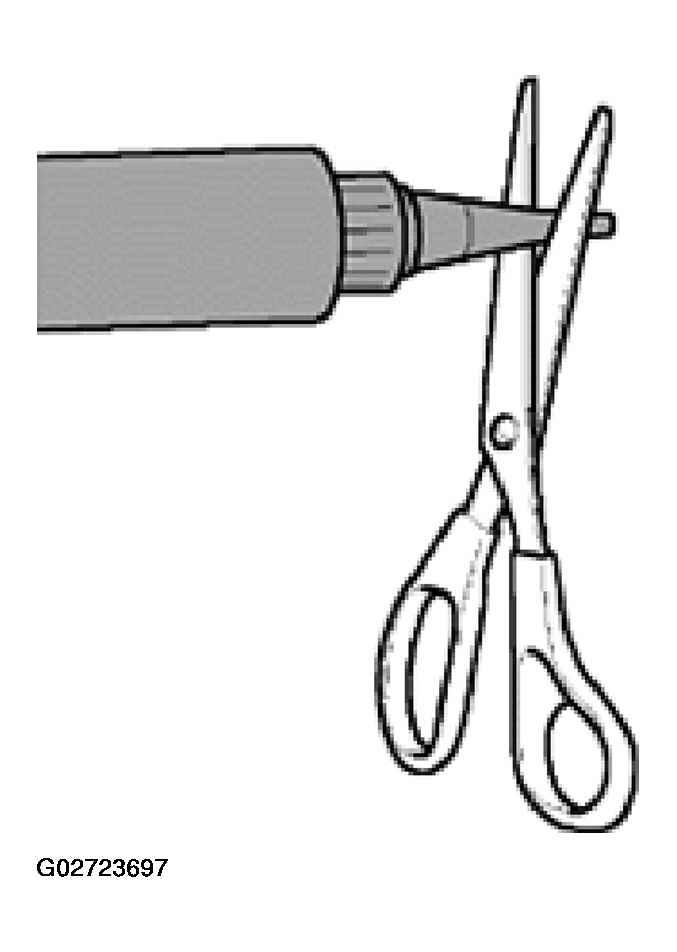

Fig 2: Cutting Off Nozzle Of Tube At Front Marking

Courtesy of AUDI OF AMERICA, INC.

NOTE: The bead of sealant must not be thicker than 3 mm (approx. 1/8 in.), as otherwise excess sealant will enter the oil pan and obstruct the strainer in the oil intake pipe.

Install oil pan immediately and tighten all bolts to initially 5 Nm (44 in. lb).
Tighten bolts in crosswise sequence - final torque: 15 Nm (11 ft lb).
Replace seal on oil drain plug and tighten to 30 Nm (22 ft lb).

NOTE: After installing the oil pan, wait for about 30 minutes for the sealant to cure before filling with engine oil.

Fill with engine oil.
