Lower oil pan, removing and installing: Installing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2004 Audi A6, 2003 Audi S6, 2003 Audi A6, 2002 Audi S6, and 2002 Audi A6. However, it is still accessible from the selected car via links, so may be relevant.

Install oil pan in reverse order but note the following:

Clean oil and grease from sealing surfaces.

WARNING: Wear eye protection.

Remove remaining sealant from oil pan and engine block using electric drill and plastic brush attachment.

NOTE: Oil pan must be installed within 5 minutes of applying silicone sealer D 176 404 A2.

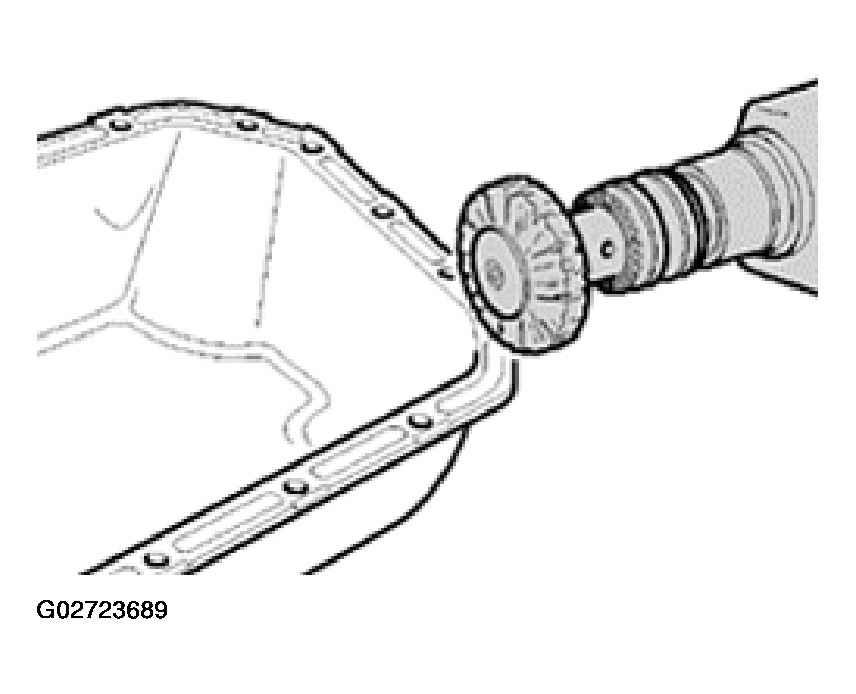

Fig 1: Removing Remaining Sealant From Oil Pan

Courtesy of AUDI OF AMERICA, INC.

Cut off nozzle of tube at front marking (nozzle dia. approx. 3 mm or 5/16 in.).
- Thickness of sealant bead: 2 to 3 mm (approx. 1/8 in.)

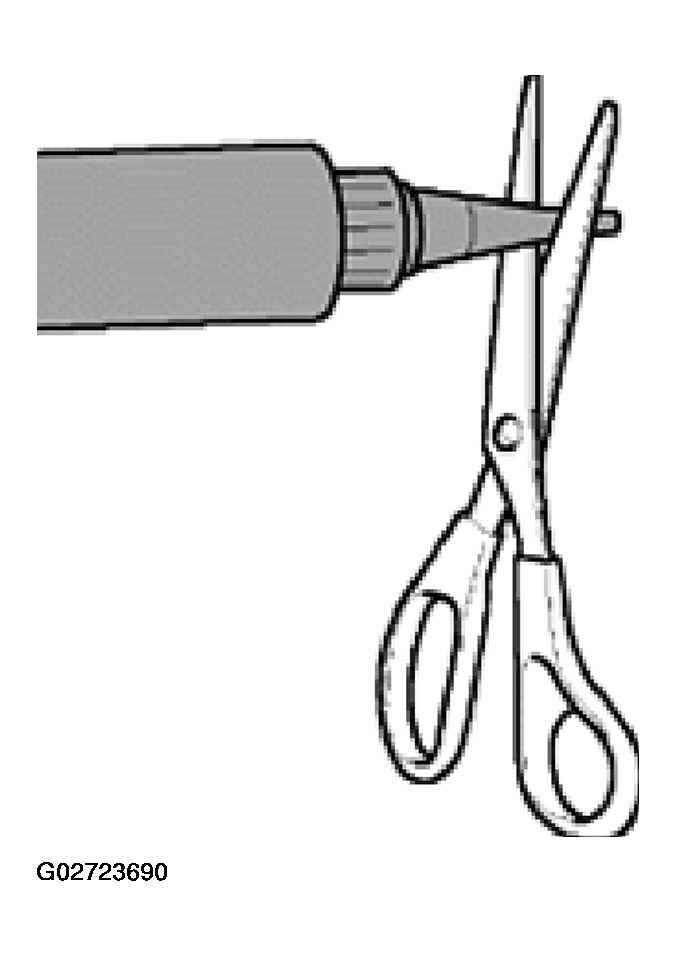

Fig 2: Cutting Off Nozzle Of Tube At Front Marking

Courtesy of AUDI OF AMERICA, INC.

CAUTION: Part numbers are listed for reference only. Always check with your Parts department for the latest information.

NOTE: The bead of sealant must not be thicker than 3 mm (approx. 1/8 in.), as otherwise excess sealant will enter the oil pan and obstruct the strainer in the oil intake pipe.

Install oil pan immediately and tighten all bolts initially to 5 Nm (44 in. lb).
Tighten bolts in crosswise sequence - final torque: 15 Nm (11 ft lb).
Replace seal on oil drain plug and tighten to 30 Nm (22 ft lb).

NOTE: After installing the oil pan, wait for about 30 minutes for the sealant to cure before filling with engine oil.

Fill with engine oil. See ENGINE OIL, FILLING .
