Component layout

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2004 Audi A6, 2003 Audi S6, 2003 Audi A6, 2002 Audi S6, and 2002 Audi A6. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: DO NOT overfill oil past the MAX mark on the oil dipstick. Damage to the Three Way Catalytic Converter (TWC) could result.
NOTE: Always replace gaskets and seals.

The following list pertains to Fig 1.

  1. Oil pan - lower section
  2. 10 Nm (7 ft lb)
  3. Oil pan - upper section
  4. 10 Nm (7 ft lb)
  5. Grid section
  6. Circlip
  7. Rubber tube
  8. Strainer
  9. Oil pump
  10. 25 Nm (18 ft lb)
  11. Baffle plate
  12. Oil level sensor
  13. 35 Nm (26 ft lb)
  14. 25 Nm (18 ft lb)
  15. 10 Nm (7 ft lb)
  16. 25 Nm (18 ft lb)
  17. 60 Nm (44 ft lb) + additional 90°
    • Apply sealant D 454 300 02 before inserting
    • ALWAYS REPLACE BOLTS
  18. Plate
  19. Drive plate
    • When assembling, make sure that dowel for ignition timing is correctly inserted in drive plate.
    • Dowel should project 20 - 22 mm (0.78 to 0.86 in.) from drive plate
  20. 10 Nm (7 ft lb)
  21. Rear sealing flange with oil seal

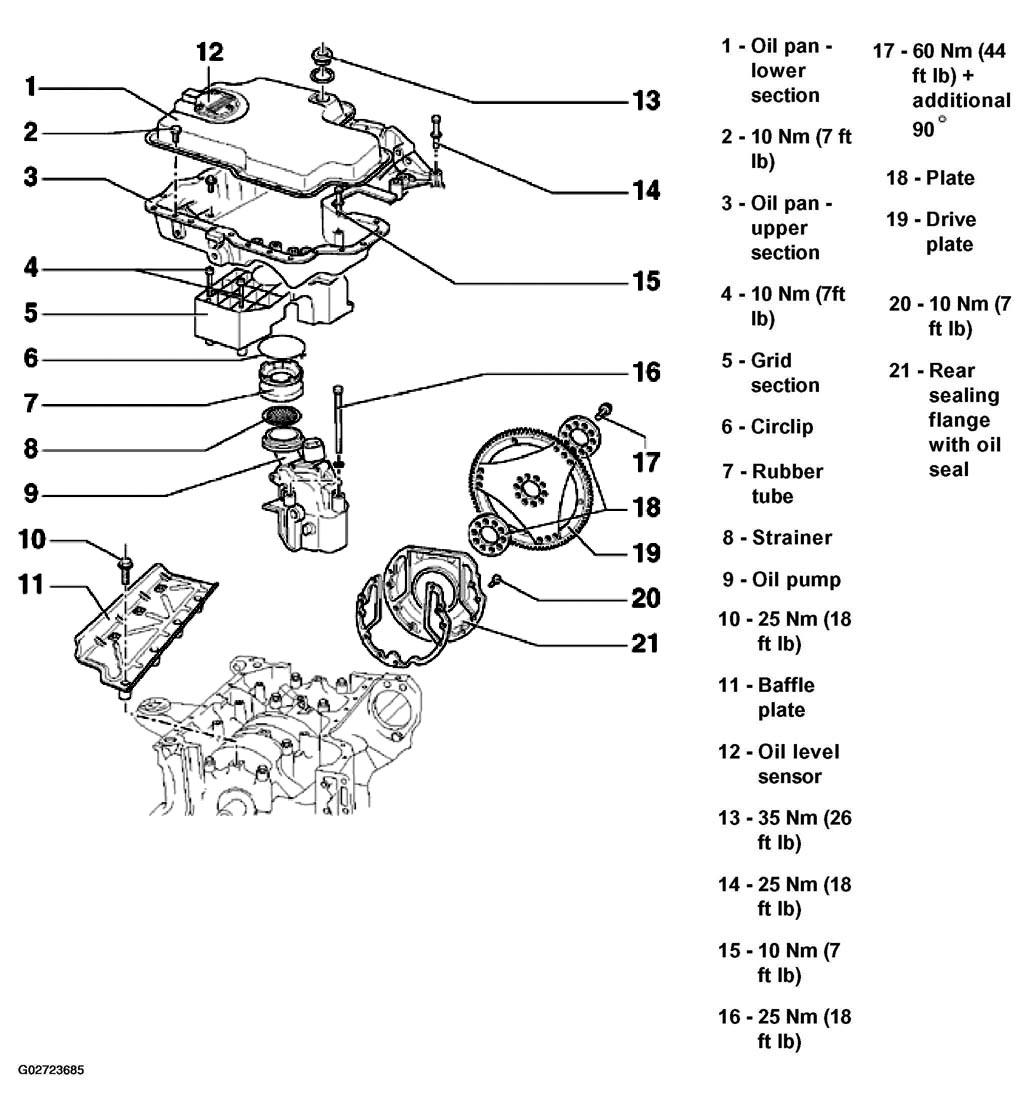

  22. Fig 1: Identifying Lubrication Component System Layout
    G02723685Courtesy of AUDI OF AMERICA, INC.
