Vibration damper, removing and installing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2004 Audi A6, 2003 Audi S6, 2003 Audi A6, 2002 Audi S6, and 2002 Audi A6. However, it is still accessible from the selected car via links, so may be relevant.

Ribbed belt, removing and installing, see RIBBED BELT, REMOVING AND INSTALLING .
NOTE: It is not necessary to loosen the center bolt to remove the vibration damper.
Remove vibration damper.

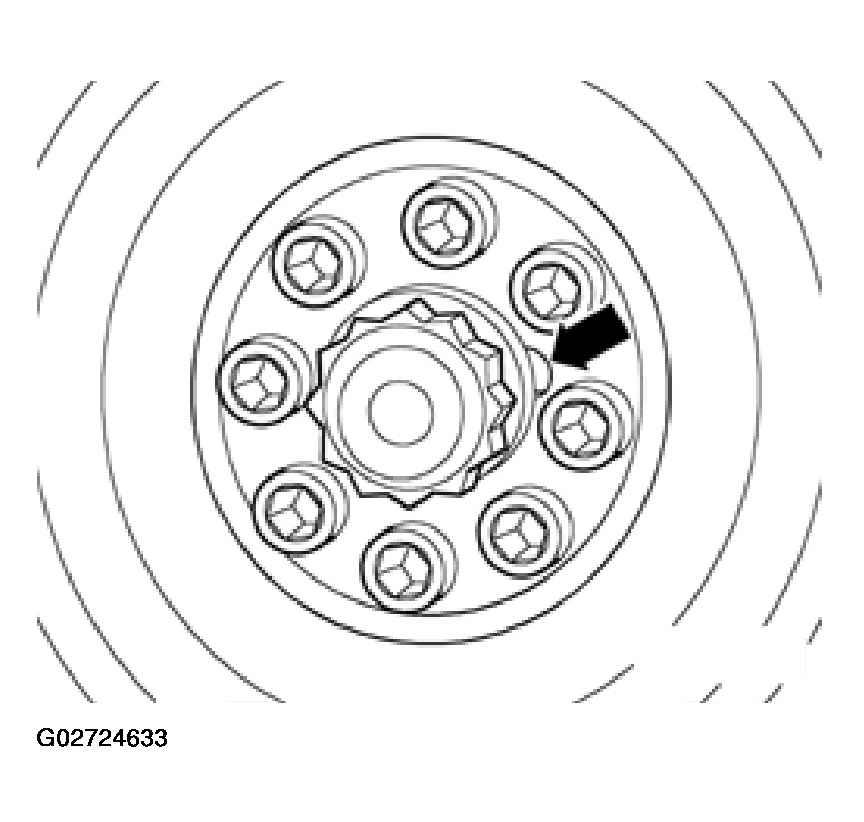

When installing, the notch -arrow- in the vibration damper must be aligned with the locating lug on the toothed belt sprocket.

Fig 1: Installing Vibration Damper
Courtesy of AUDI OF AMERICA, INC.
Install vibration damper.
- Tightening torque: 20 Nm (15 ft lb)
Ribbed belt, installing, see RIBBED BELT, REMOVING AND INSTALLING .
