Ribbed belt, removing and installing: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2004 Audi A6, 2003 Audi S6, 2003 Audi A6, 2002 Audi S6, and 2002 Audi A6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and equipment:

Pin wrench 3212
Open end wrench 3312
Pin 3204

Removing:

Remove noise insulation.

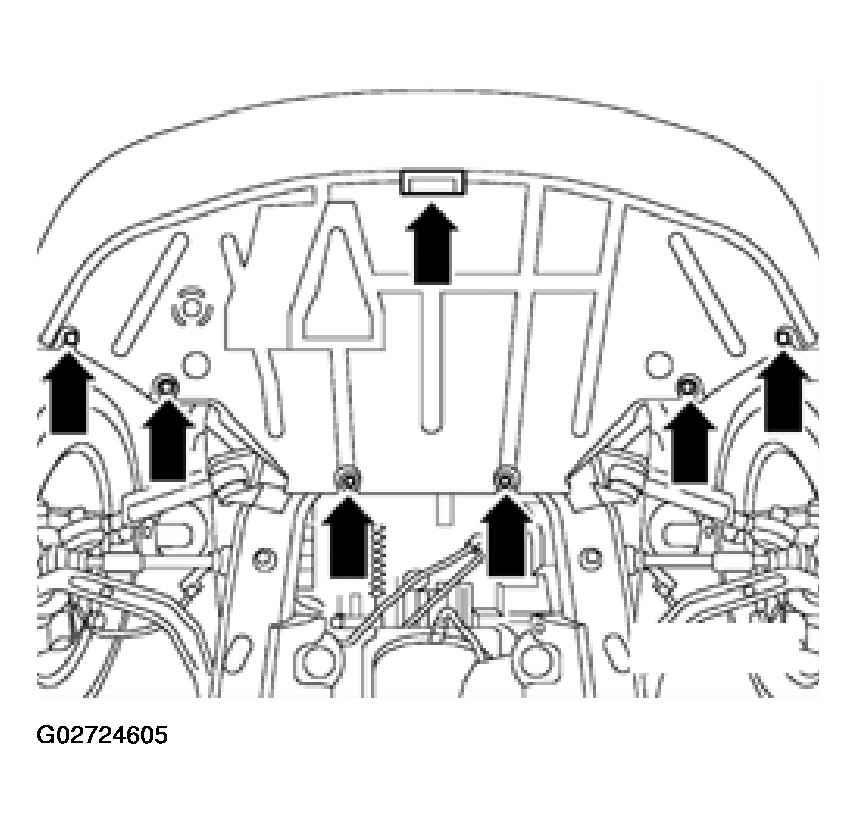

Fig 1: Removing Noise Insulation

Courtesy of AUDI OF AMERICA, INC.

Remove front bumper. See FRONT BUMPER .
Adjust lock carrier to service position. See LOCK CARRIER, SERVICE POSITION .
Remove air intake hose to air cleaner.
Remove engine cover panel.

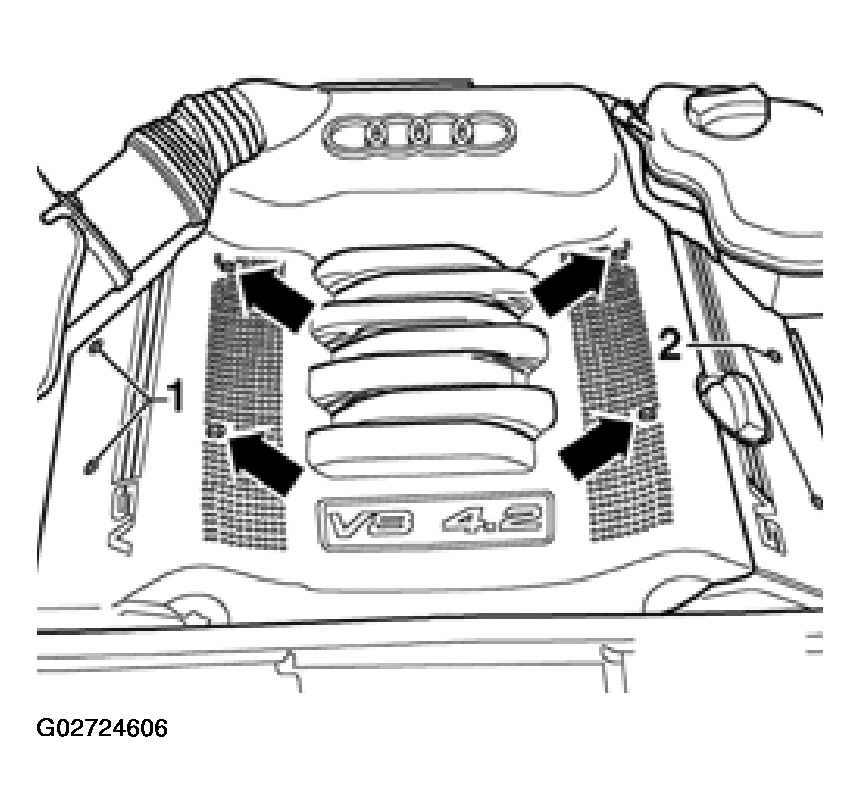

Fig 2: Removing Engine Cover Panel

Courtesy of AUDI OF AMERICA, INC.

Remove outer ring for viscous fan -arrows-.

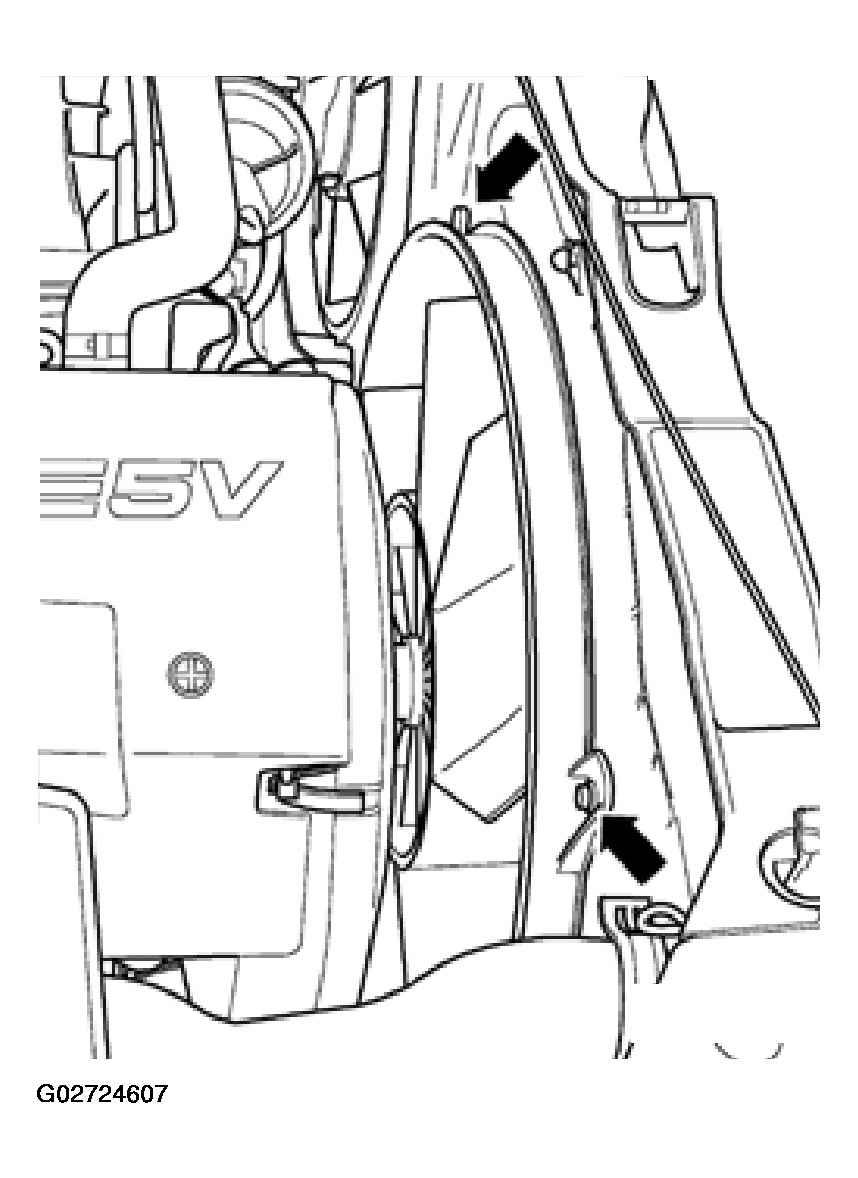

Fig 3: Removing Outer Ring For Viscous Fan

Courtesy of AUDI OF AMERICA, INC.

Remove electric fan.
Counter-hold pulley for viscous fan with pin wrench 3212 and remove fan with wrench 331 (FAN HAS LEFT HAND THREAD).

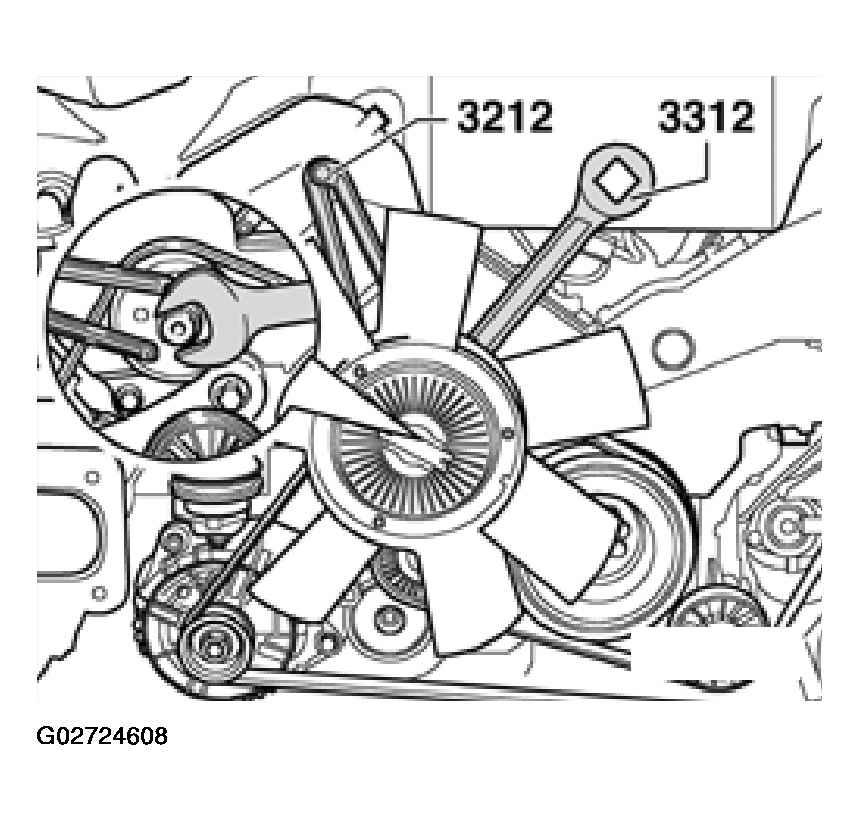

Fig 4: Removing Pulley For Viscous Fan With Pin Wrench 3212
Courtesy of AUDI OF AMERICA, INC.
Remove viscous fan and air shroud for fan.
CAUTION:
- Mark the running direction of the belt with crayon or marker before removing. Reinstalling a used belt in reversed running direction could damage the belt.
- When installing a used ribbed belt be sure the belt runs in the right direction and is seated correctly on the belt pulleys.
To loosen ribbed belt, turn belt tensioner with 19mm wrench in direction of arrow until both holes are aligned. Insert drift 3204 to hold tensioner in position.

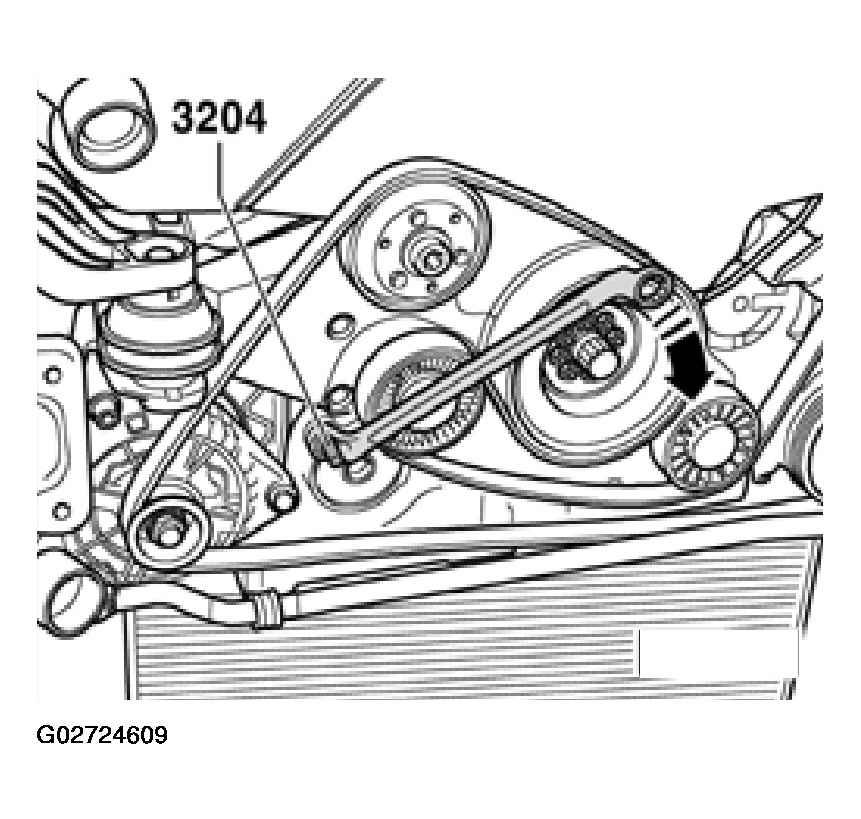

Fig 5: Inserting Drift 3204 To Hold Ribbed Belt Tensioner In Position
Courtesy of AUDI OF AMERICA, INC.
Remove belt.
