Hid Headlamp, Removing And Installing

WARNING:

Risk of death due to high voltage, injury risk and environmental hazard.

Usage and safety information for gas discharge headlamps. Refer to HID HEADLAMP USAGE AND SAFETY PRECAUTIONS .

Removal

Fig 1: Identifying Locking Slide And Housing Cover

Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and remove the key.

-- Turn the headlamp switch to "0".

-- Remove the headlamp, refer to HEADLAMP, REMOVING AND INSTALLING .

-- Release locking slide -2- in direction of -arrow- and remove housing cover -1- from headlamp housing.

-- Disconnect electrical connector -1-.

-- Turn the locking ring -3- in direction of -arrow- and remove the HID bulb -2-.

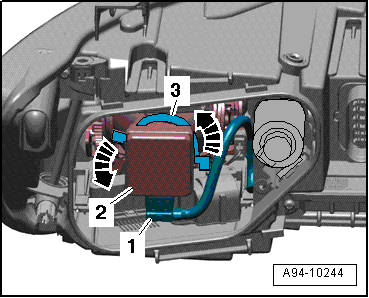

Fig 2: Turning Locking Ring -3- In -Direction Of Arrow- To Remove HID Bulb -2-

Courtesy of AUDI OF AMERICA, LLC

Installation

Install in reverse order of removal. Note the following:

-- Insert the new HID bulb into the housing without touching the bulb with bare hands.

Electrical connection must face downward.

-- Secure HID lamp with circlip.

-- Close the housing lid.

-- Press the housing cover on the headlamp housing and secure the housing cover with the lock washer. Pay attention that all four tabs engage securely.

-- Install the headlamp, refer to HEADLAMP, REMOVING AND INSTALLING .
