Daytime Running Lamp Bulb And Turn Signal Lamp Bulb, Changing

Removal

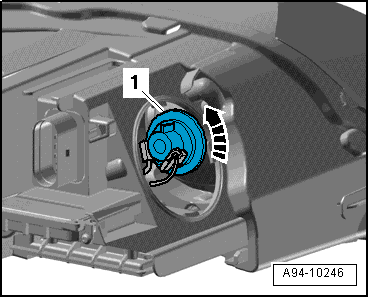

Fig 1: Identifying Housing Cover

Courtesy of AUDI OF AMERICA, LLC

-- Turn housing cover -1- counterclockwise in direction of -arrow- and remove from headlamp housing.

-- Turn socket counter-clockwise in direction of -arrow- and remove from headlamp housing.

-- Remove lamp from socket.

Fig 2: Identifying Turn Socket

Courtesy of AUDI OF AMERICA, LLC

Installation

Install in reverse order of removal. Note the following:

-- Insert bulb in housing, taking care not to touch glass bulb with bare hands.

-- Secure socket by turning clockwise.

-- Close housing cover by turning clockwise.
