Headlamp Housing Bracket And Mount Overview

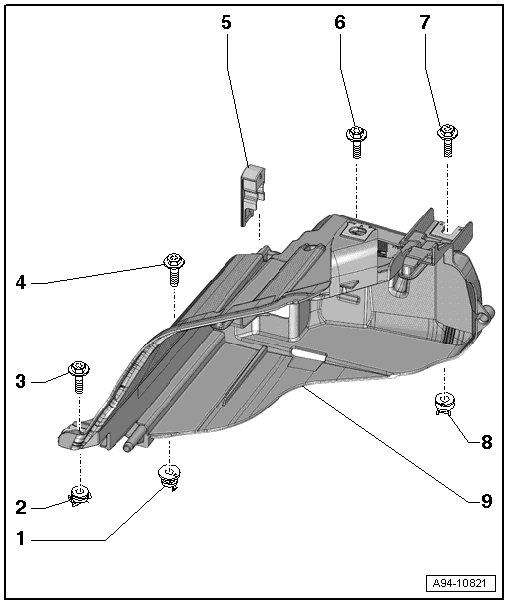

Fig 1: Identifying Headlamp Housing Bracket And Mount Overview

Courtesy of AUDI OF AMERICA, LLC

1. Rear Adjuster
   • For adjusting headlamp to fender and bumper contour.
2. Front Adjuster
   • For adjusting headlamp to fender and bumper contour.
3. 4.5 Nm
4. 4.5 Nm
5. Retaining Clip
   • For securing headlamp housing to housing mount.
6. 4.5 Nm
7. 4.5 Nm
8. Outer Adjuster
   • For adjusting headlamp to fender and bumper contour.
9. Headlamp Housing Mount
   • Removing and Installing, refer to HEADLAMP HOUSING BRACKET, REMOVING AND INSTALLING AND ALIGNING HEADLAMP TO BODY .
