Fog Lamp, Removing And Installing

Removal

-- Turn off the ignition and remove the key.

-- Turn the headlamp switch to "0".

-- Remove air intake grille -1- in lower part of bumper cover -arrows-.

Vehicles with S Line Equipment:

-- Release the tab in direction of -arrow A- and remove the air intake grille -1- in the bottom of the bumper cover in direction of -arrow B-.

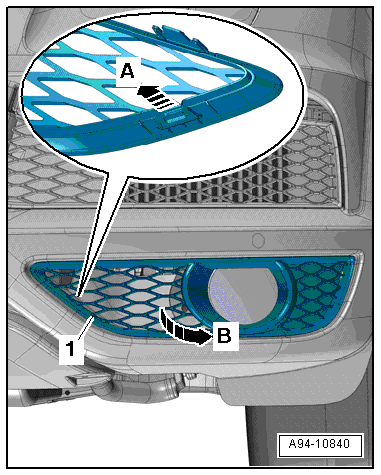

Fig 1: Releasing Tab -Arrow A- And Air Intake Grille -1-

Courtesy of AUDI OF AMERICA, LLC

All Vehicles:

-- Remove screws -arrows- and remove the fog lamp housing -1- from the bumper cover.

-- Disconnect the connector.

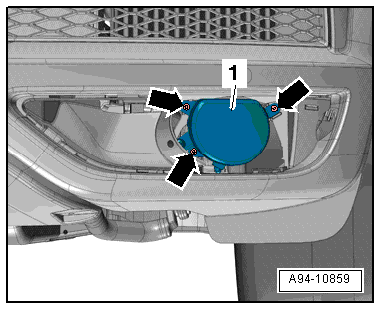

Fig 2: Identifying Screws -Arrows- And Fog Lamp Housing -1-

Courtesy of AUDI OF AMERICA, LLC

Installation

Install in reverse order of removal. Note the following:

-- Adjusting fog lamps, refer to FOG LAMP, ADJUSTING .

Tightening Specifications

Component	Nm
Fog lamp housing to bumper cover	2
