Driver Head Curtain Airbag Igniter -N251- AND Front Passenger Head Curtain Airbag Igniter -N252- OVERVIEW

WARNING:

• Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC, ELECTRICAL AND MECHANICAL RESTRAINT SYSTEM COMPONENTS, SAFETY PRECAUTIONS AND TESTING PROCEDURES .
• Note the additional safety precautions when working on the side curtain airbag. Refer to HEAD CURTAIN AIRBAG ADDITIONAL SAFETY PRECAUTIONS .

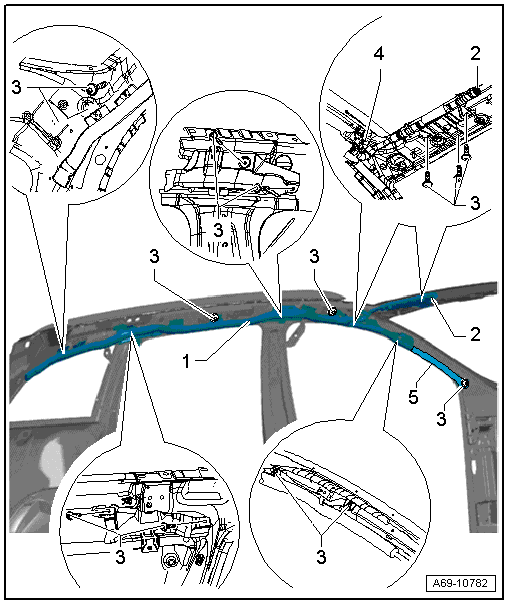

Fig 1: Head Curtain Airbag With Driver/Passenger Head Curtain Airbag Igniter N251 And N252

Courtesy of AUDI OF AMERICA, LLC

1. Head Curtain Airbag
   • Removing and Installing. Refer to Driver Head Curtain Airbag Igniter -N251- AND Front Passenger Head Curtain Airbag Igniter -N252-, REMOVING AND INSTALLING .
2. Connector
   • For side curtain airbag.
   • Disconnecting and connecting. Refer to Driver Head Curtain Airbag Igniter -N251- AND Front Passenger Head Curtain Airbag Igniter -N252-, REMOVING AND INSTALLING .
3. Bolt
   • 5 Nm
   • Self-locking
   • Replacing
   • Threaded holes for screws must always be cleaned (for example, with thread cutter).
4. Cap Nut
   • 9 Nm
   • On ground bolt.
5. Catch Strap
   • In the front on the head curtain airbag.
   • Must not cross with the wiring harness.
