Engine, Securing On Engine And Transmission Holder

WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Engine Sling 2024 A
Engine And Transmission Holder VAS6095 with Engine/Transmission Holder - Universal Mounting VAS6095/1 and Engine/Transmission Holder - V6 FSI Bracket VAS6095/1-5
Shop Crane VAS 6100
Lift Arm Extension VAS6101

Procedure

Engine/transmission assembly removed and separated on Scissor Lift Table VAS6131B. Refer to ENGINE AND TRANSMISSION, SEPARATING .
Engine secured with Joint Support VAS6131/13-7.

-- Remove the bolts -arrows- from the left engine mount.

Fig 1: Identifying Left Engine Mount Nut -1- And Bolts -Arrows-

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore item -1-.

WARNING:

Risk of accident!

The engine may be transported only in the manner described and without the transmission.

The engine is separated from the transmission. Refer to ENGINE AND TRANSMISSION, SEPARATING .

-- Engage the Engine Sling 2024 A on the engine lifting eyes and on the Shop Crane VAS6100 with Lift Arm Extension VAS6101 as shown in the illustration.

Fig 2: Using Engine Sling 2024 A And Shop Crane VAS6100

Courtesy of AUDI OF AMERICA, LLC

NOTE:

To be aligned to the center of gravity of the engine assembly, the hole rails of the lifting hook must be inserted as shown in the illustration.

WARNING:

There is the risk of an accident.

Lifting hooks and alignment pins on the engine sling must be secured with locating pins -arrows-.

-- Remove the Joint Support VAS6131/13-7 from the engine -arrow-.

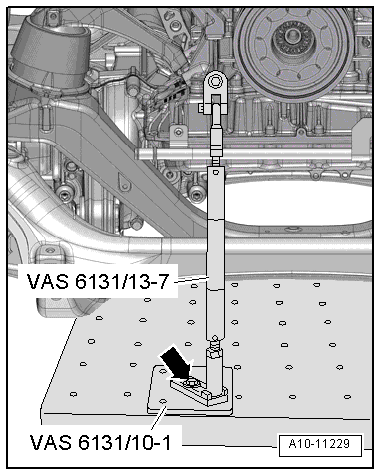

Fig 3: Attaching VAS 6131/13-7 To Scissor Lift Table Also With VAS 6131/10-1 Using An M10 X 35 Bolt -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Raise engine from engine carrier.

-- Remove the bolts -arrows- and remove the right -1- and left engine supports.

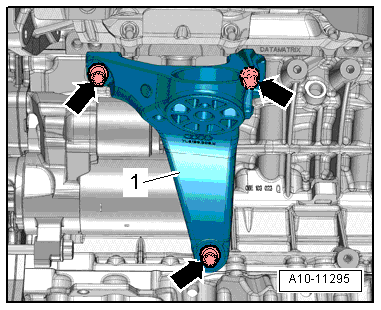

Fig 4: Identifying Right Engine Support -1- And Bolts -Arrows-

Courtesy of AUDI OF AMERICA, LLC

-- Secure the engine with Engine/Transmission Holder - Universal Mounting VAS6095/1 and Engine/Transmission Holder - V6 FSI Bracket VAS6095/1-5 on the Engine And Transmission Holder VAS6095 to 40 Nm as shown in the illustration.

Fig 5: Identifying Engine, Holder VAS 6095 And Bracket For V6 FSI Engine VAS 6095/1-5

Courtesy of AUDI OF AMERICA, LLC
