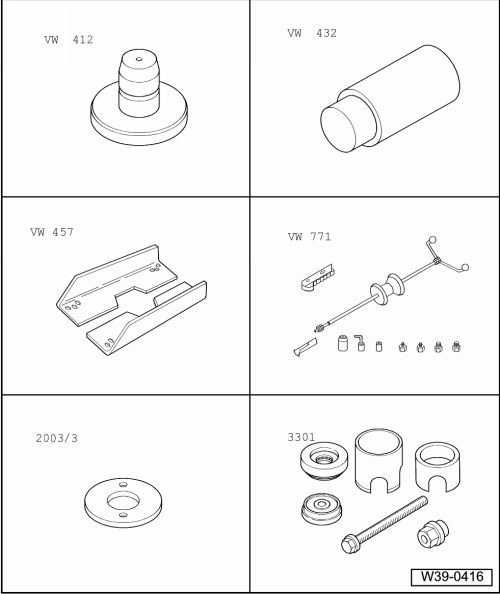

Special Tools

Special tools and workshop equipment required

• PunchVW 412
• Thrust pieceVW 432
• Support channelsVW 457
• Slide hammerVW 771
• Seal installer2003/3
• Alignment fixture3301
• Sealing greaseG 052 128 A1

Special tools and workshop equipment required

• Engine support bridge10-222 A
• Spindle10-222 A/10
• Supports10-222 A/19
• Engine Sling2024 A with Bracket2024 A/1
• Engine/transmission jackV.A.G 1383 A
• BracketT10014

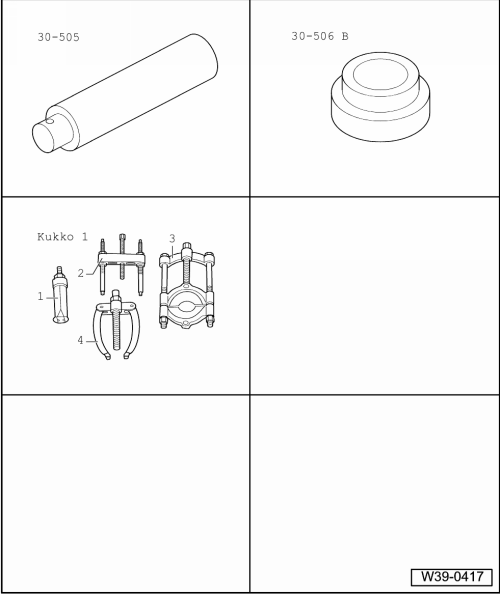

Special tools and workshop equipment required

• Mandrel30 - 505
• Thrust pad30 - 506 B
• -1- - Kukko 21/6 Internal puller
• -4- - Kukko 22/2 Counter-support

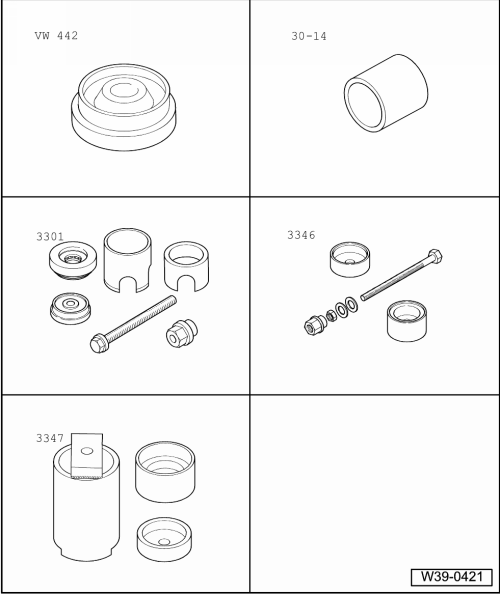

Special tools and workshop equipment required

• Thrust pieceVW 442
• Sleeve30 - 14
• Alignment fixture3301
• Alignment fixture3346
• Alignment fixture3347

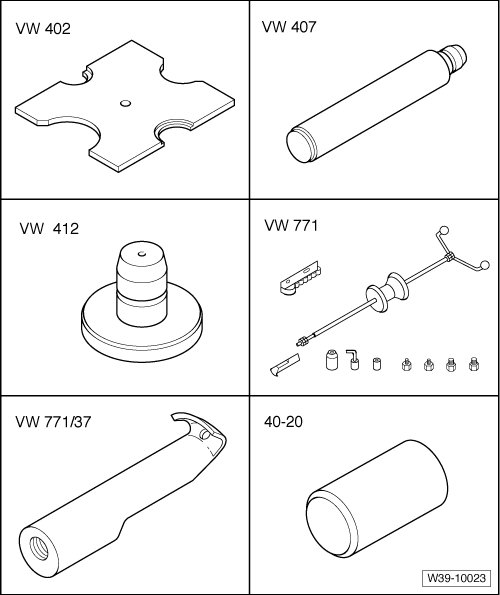

Special tools and workshop equipment required

• Pressure plateVW 402
• PunchVW 407
• PunchVW 412
• Slide hammerVW 771
• Pulling hookVW 771/37
• Seal driver-front wheel bearing40 - 20

Special tools and workshop equipment required

• Pressure plateVW 402
• PunchVW 407
• PunchVW 412
• Slide hammerVW 771
• Pulling hook771/37
• Seal driver-front wheel bearing40 - 20

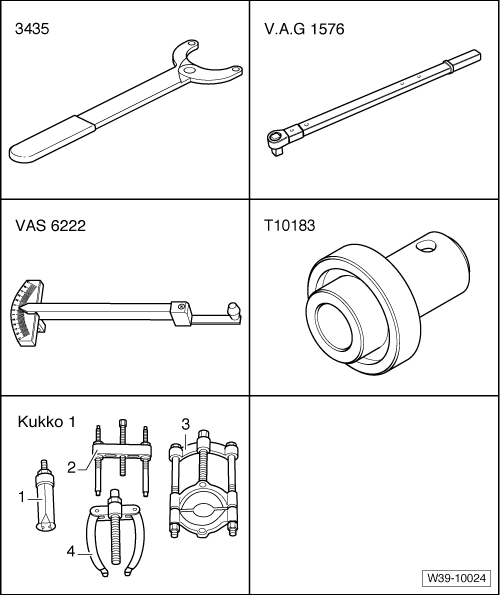

Special tools and workshop equipment required

• Retainer3435
• Torque WrenchV.A.G 1576
• Friction meterVAS 6222
• Thrust pieceT10183
• -3- - Kukko 17/2 Separating device
• Sealing greaseG 052 128 A1
• Thread locking compoundD 154 100 A1

Special tools and workshop equipment required

• Retainer3145
• Torque WrenchV.A.G 1576
• Friction meterVAS 6222
• Thrust pieceT10182
• -3- - Kukko 17/2 Separating device
• Sealing greaseG 052 128 A1
• Thread locking compoundD 154 100 A1

Special tools and workshop equipment required

• Thrust padVW 512
• Thrust pieceVW 554
• Alignment fixture3253
• Alignment fixtureT10030

Special tools and workshop equipment required

• Thrust pieceVW 442
• Thrust pieceVW 554
• Sleeve30 - 14
• Alignment fixture3301
• Alignment fixture3346
• Alignment fixture3347

Special tools and workshop equipment required

• Torque WrenchV.A.G 1331
  Fig 11: Identifying Torque Wrench (5 To 50 Nm) V.A.G 1331

  Courtesy of AUDI OF AMERICA, LLC
• Used oil collection and extraction deviceV.A.G 1782
  Fig 12: Identifying Oil Extractor V.A.G 1782

  Courtesy of AUDI OF AMERICA, LLC
• Engine/transmission jackV.A.G 1383 A
  Fig 13: Engine & Transmission Jack VAG 1383 A

  Courtesy of AUDI OF AMERICA, LLC
• Counterhold toolT10172 with adaptersT10172/6
  Fig 14: Counter-Holder Tool T10172

  Courtesy of AUDI OF AMERICA, LLC
• Slide hammerVW 771
  Fig 15: Identifying Slide Hammer VW 771

  Courtesy of AUDI OF AMERICA, LLC
• Pulling hookVW 771/37
• Thrust pieceT10256
  Fig 16: Identifying Thrust Plate T10256

  Courtesy of AUDI OF AMERICA, LLC
• DriftVW 295
  Fig 17: Drift VW 295

  Courtesy of AUDI OF AMERICA, LLC
• Engine Support Basic SetT40091
  Fig 18: Engine Support Basic Set T40091

  Courtesy of AUDI OF AMERICA, LLC
• Engine Support Supplement SetT40093
  Fig 19: Engine Support Supplement Set T40093

  Courtesy of AUDI OF AMERICA, LLC
• Thrust pieceT10260
  Fig 20: Identifying Thrust Plate T10260

  Courtesy of AUDI OF AMERICA, LLC
• Thrust pieceT10259
  Fig 21: Identifying Thrust Plate T10259

  Courtesy of AUDI OF AMERICA, LLC
• Final drive supportT10337
  Fig 22: Identifying Gearbox Support T10337

  Courtesy of AUDI OF AMERICA, LLC
