Needle Bearing For Left Flange Shaft, Replacing

Special tools and workshop equipment required

• Mandrel30 - 505
• Thrust pad30 - 506 B
• Kukko 21/6 Internal puller
• Kukko 22/2 Counter-support

Needle bearing, removing

-- Remove front final drive. Refer to FRONT FINAL DRIVE .

-- Remove left flange shaft and seal. Refer to LEFT FLANGE SHAFT SEAL .

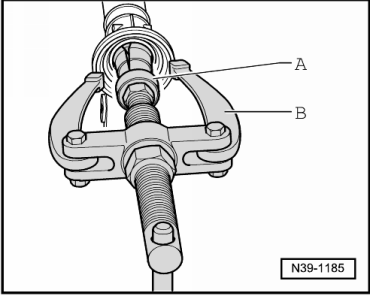

-- Pull out needle bearing for left flange shaft.

A -

Internal puller 37 to 46 mm, e.g. Kukko 21/6

B -

Counter support, e.g. Kukko 22/2

Needle bearing, installing

-- Drive in needle bearing -A- for left flange shaft up to stop.

-- Remove left flange shaft and seal. Refer to LEFT FLANGE SHAFT SEAL .

-- Install front final drive FRONT FINAL DRIVE .

-- Check gear oil in front final drive. Refer to AXLE OIL LEVEL IN FRONT FINAL DRIVE, CHECKING .
