Installation Position Of Bonded Rubber Bushing

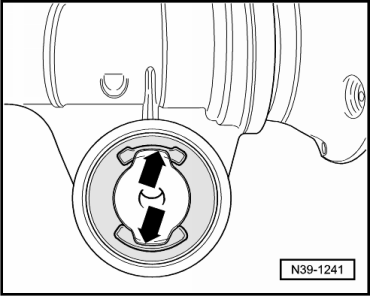

Bonded rubber bushings with 2 recesses

-- The recesses in the bushing must be vertical relative to final drive -arrows-.

Fig 1: Bonded Rubber Bushing, Installation Position

Courtesy of AUDI OF AMERICA, LLC

Bonded rubber bushings with 4 recesses

The smaller recesses -arrows- and smaller holes -A- of bushings must be vertical relative to final drive.

Fig 2: Bonded Rubber Bushings With 4 Recesses

Courtesy of AUDI OF AMERICA, LLC

Bonded rubber bushings with 2 recesses

-- The recesses in the bushing must be vertical relative to final drive -arrows-.

Fig 1: Bonded Rubber Bushing, Installation Position

Courtesy of AUDI OF AMERICA, LLC

Bonded rubber bushings with 4 recesses

The smaller recesses -arrows- and smaller holes -A- of bushings must be vertical relative to final drive.

Fig 2: Bonded Rubber Bushings With 4 Recesses

Courtesy of AUDI OF AMERICA, LLC
