Dust Cap For Flange Shaft, Replacing

Special tools and workshop equipment required

• Pressure plateVW 402
• PunchVW 412
• Tube3146
• Kukko 17/2 Separating device

-- Press off dust cap -B- from flange shaft.

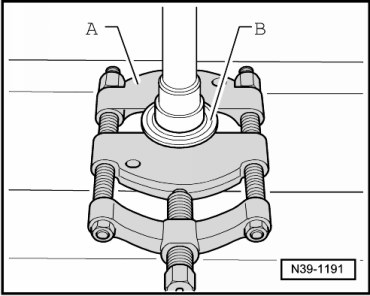

Fig 1: Pressing Off Dust Cap From Flange Shaft

Courtesy of AUDI OF AMERICA, LLC

A -

Separating device 22 to 115 mm, e.g. Kukko 17/2

-- Press dust cap -A- onto flange shaft.

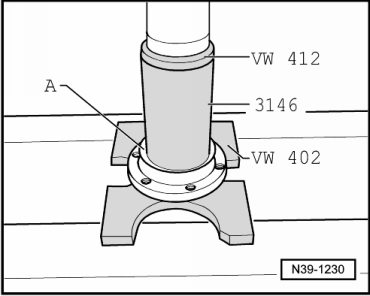

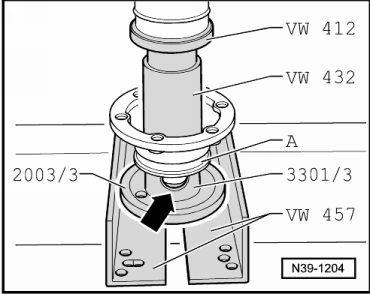

Fig 2: Pressing Dust Cap Onto Flange Shaft

Courtesy of AUDI OF AMERICA, LLC

-- Press off dust cap -B- from flange shaft.

Fig 1: Pressing Off Dust Cap From Flange Shaft

Courtesy of AUDI OF AMERICA, LLC

A -

Separating device 22 to 115 mm, e.g. Kukko 17/2

-- Press dust cap -A- onto flange shaft.

Fig 2: Pressing Dust Cap Onto Flange Shaft

Courtesy of AUDI OF AMERICA, LLC

Set sleeve3301/3 in place with recess -arrow- facing toward the dust cap -A-.
