Lane Change Assistance, Preparing For Calibration
Courtesy of AUDI OF AMERICA, LLC

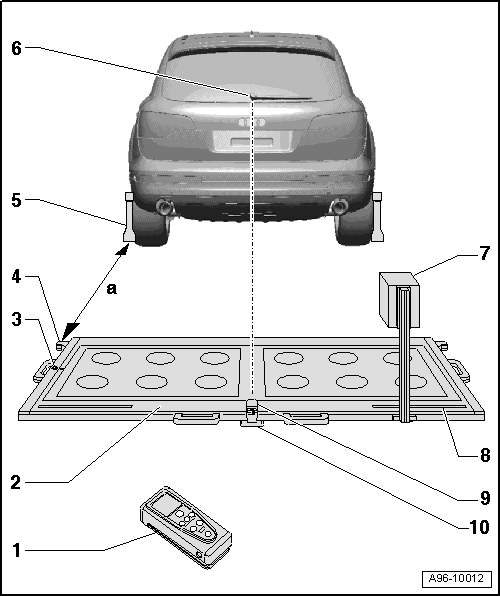

- Calibration Tool - Spacing LaserVAS6350/2
- For distance measurement.
- Usage operating instructions.
- Calibration ToolVAS6350
- Level
- On the Calibration ToolVAS6350.
- To check horizontal position of Calibration ToolVAS6350.
- Catch Bracket
- For mounting distance laser Calibration Tool - Spacing LaserVAS6350/2 for distance measurement.
- Distance to Calibration Tool - Wheel Center MountingsVAS6350/1 on rear wheels: Dimension -a- = 1700 +/- 2 mm.
- Calibration Tool - Wheel Center MountingsVAS6350/1
- With wheel center sensor and measuring paddle.
- Rear Windshield Wiper
- Laser point is aligned on center of windshield wiper shaft.
- Calibration Tool - Lane Change Calibration ToolVAS6350/4
- Is moved from one side of measuring field to the other during calibration.
- When installed correctly, vehicle electrical system voltage line must be connected at bottom left of calibration device (as seen in direction of travel).
- Measurement Scale
- For positioning Lane Change Assistance Calibration Device Calibration Tool - Lane Change Calibration ToolVAS6350/4.
- Calibration Tool - Linear LaserVAS6350/3
- With "laser eye protection".
- On the Calibration ToolVAS6350.
- Turning on and off, refer to the Operating Instructions.
- Plastic Foot
- Quantity: 3
- Adjustable in order to adjust horizontal position of Calibration ToolVAS6350.
