Front Wheel Spoiler Overview

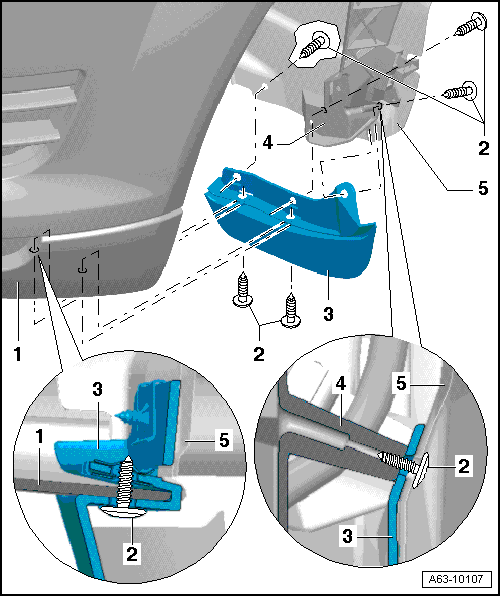

Fig 1: Identifying Front Wheel Spoiler Assembly Overview 80-200 Pry Lever

Courtesy of AUDI OF AMERICA, LLC

Front Bumper Cover
Bolt
- 2 Nm
Front Wheel Spoiler
- Remove screws -2- on wheel housing -5- and from lower wheel spoiler.
- Remove wheel spoiler under wheel housing liner.
Bumper Cover Guide Piece
Front Wheel Housing Liner
- Press to side slightly and remove wheel spoiler.
