Cooler -J698-, REMOVING AND INSTALLING: Installing

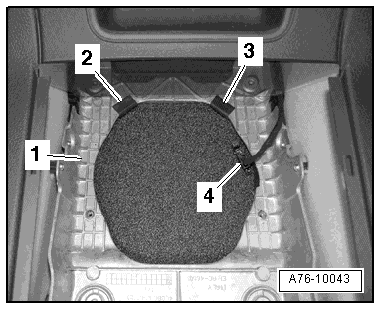

Fig 1: Identifying Edge Protectors -2- And -3- Are Installed -1-

Courtesy of AUDI OF AMERICA, LLC

Installation is reverse of removal, noting the following:

-- Make sure the edge protectors -2- and -3- are installed -1-.

-- Install the cooler and compressor into the multi-fox and connect the connector -4-.

-- Mount the compressor on the edge protector and tighten the screws.

NOTE:

The cooler must move easily.

If it is not easy to move the compressor, then pull it out just far enough so that the edge protector can be mounted on the multi-box mount.

-- Push the Cooler -J698- into the multi-box until the retaining clamps engage audibly.
