Rear Lid, Adjusting

Special tools and workshop equipment required

Gauge - Gap Adjustment 3371

Panel Gap Dimensions

Fig 1: Identifying Panel Gap Dimensions: Rear Lid And Fuel Lid

Courtesy of AUDI OF AMERICA, LLC

-A- = 5.0 mm
-B- = 4.5 mm
-C- = 4.5 mm
-D- = 4.5 mm
-E- = 4.5 mm
-F- = 2.0 mm
-G- = 2.0 mm
-H- = 2.0 mm
-I- = 2.0 mm
Make sure all gaps are parallel to body

NOTE:

The gas-filled struts must be attached before installing a new rear lid.

Adjusting With Striker Pin

NOTE:

Before adjusting, install adjusting buffer on rear lid side completely. Refer to Fig 9

Fig 2: Identifying Vehicle With Solid Striker Pin

Courtesy of AUDI OF AMERICA, LLC

-- Remove rear cross panel trim. Refer to REAR CROSS PANEL TRIM, REMOVING AND INSTALLING .

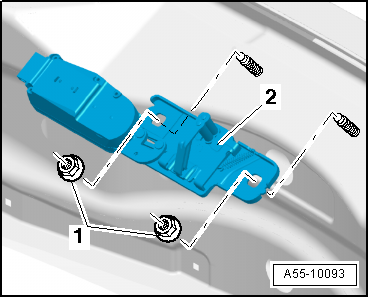

-- Loosen combination nuts -1-, striker pin -2- must be able to move.

Fig 3: Identifying Striker Pin With Closing Aid

Courtesy of AUDI OF AMERICA, LLC

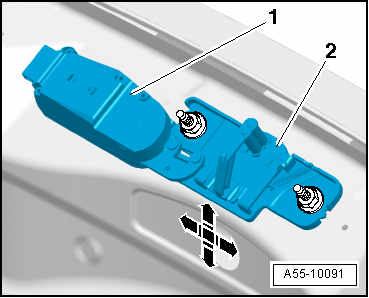

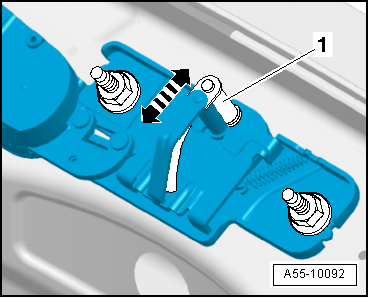

-- Loosen combination screws, striker pin -2- with motor for closing aid -1- must be adjustable.

-- For easier installation, there are markings on rear cross panel you can use to adjust the striker pin.

Fig 4: Identifying Upper And Lower Striker Pin End Position

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

To adjust the rear lid, closing aid motor must be in "lid closed" position (lower end position).

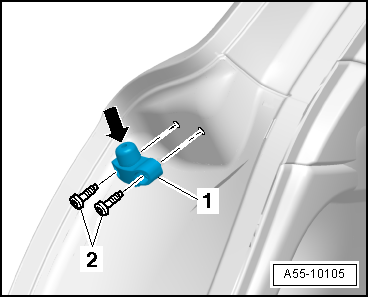

Striker pin cannot be installed in position not visible in drawing (upper end position) -1- because rear lid can contact block when closing and be damaged.
Do not use the closing assist motor to adjust rear lid.

-- Turn the upper section of the rear lid side of the adjusting buffer completely before adjusting the rear lid. Refer to Fig 9.

-- Tighten the nuts -1- by hand.

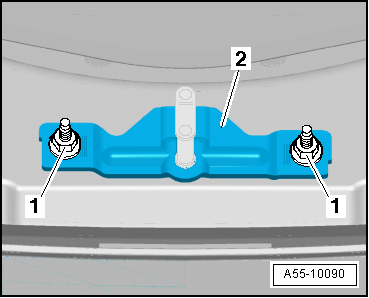

Fig 5: Identifying Vehicle With Solid Striker Pin

Courtesy of AUDI OF AMERICA, LLC

-- Close rear lid and align with body contour.

-- Rear lid lock must be engaged in main detent (2nd lug) during this.

-- Open rear lid in this position and tighten nuts -1- to 21 Nm.

Fig 6: Identifying Vehicle With Closing Aid

Courtesy of AUDI OF AMERICA, LLC

-- If the same striker pin is reinstalled, mark this location before removing.

CAUTION:

Striker pin with closing aid can only be installed in "lid closed " position, same as delivery condition for a new part.

If the same striker pin is reinstalled, open rear lid and unlock rear lid lock or latch with a screwdriver, for example.

Closing aid runs in "lid closed " position = basic position.

Now remove connector from closing aid and rear lid lock can be opened again by activating grip piece in rear lid.

-- Tighten nuts -1- lightly

-- Close rear lid and align with body contour.

-- Rear lid lock must be engaged in main detent (2nd lug) during this.

-- Open rear lid in this position and tighten nuts -1- to 21 Nm.

-- When installing, -3- tighten screws to 8 Nm.

Fig 7: Identifying Adjusting Buffer -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Turn adjusting buffer -arrow- until closed rear lid with stop buffer on rear lid side makes contact with stop.

-- Check whether rear lid still closes easily, repeat adjustment at adjusting buffer if necessary.

-- If rear lid is difficult to close, tighten the adjusting buffer slightly.

Adjustment Buffer Installation Position

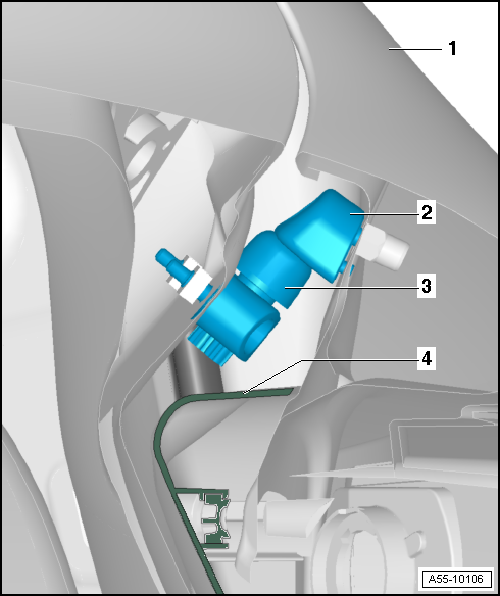

Fig 8: Identifying Adjustment Buffer Installation Position

Courtesy of AUDI OF AMERICA, LLC

Rear Lid
- When adjusted correctly, adjusting buffer -3- must contact stop buffer -2- with light pretension when rear lid is closed.
Rubber Stop
- Tighten screws to 8 Nm when installing.
Adjusting Buffer
- Tighten screws to 8 Nm when installing.
- Adjustment buffer secured on body-side with bolts.
- Height adjustment is carried out using adjusting screw.
- When rear lid is adjusted correctly, adjusting buffer must make contact with light pre-tension with stop on rear lid side.
Side Panel

Fig 9: Identifying Adjustment Screw/Buffer And Protective Cap

Courtesy of AUDI OF AMERICA, LLC

-- Before adjusting rear lid, install adjusting screw -2- with protective cap -1- completely in adjusting buffer -3-

-- Protective cap -1- pressed in.

-- Remove the adjusting screw -2- just enough until the cap -1- makes contact with light pre-tension with stop on rear lid side when the rear lid is closed.

-- Check whether lid sits without play and in flush position by pushing or pulling on the side edge of rear lid below rear window.

-- If necessary, repeat adjustment.

Lid-Side Stops

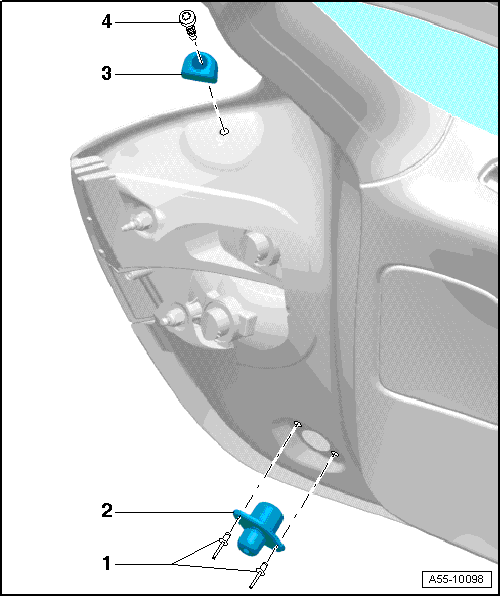

Fig 10: Identifying Lid-side Stops Removal/Installation

Courtesy of AUDI OF AMERICA, LLC

Blind Rivet
Stop
- To remove, bore out the rivet heads, drive out the rivet shafts and remove the lid.
Stop
- Adjustable
  -- Height adjustment is carried out using adjusting buffer on body side.
Bolt
- Tightening specification: 8 Nm
