Rear Lid Latch, Removing And Installing

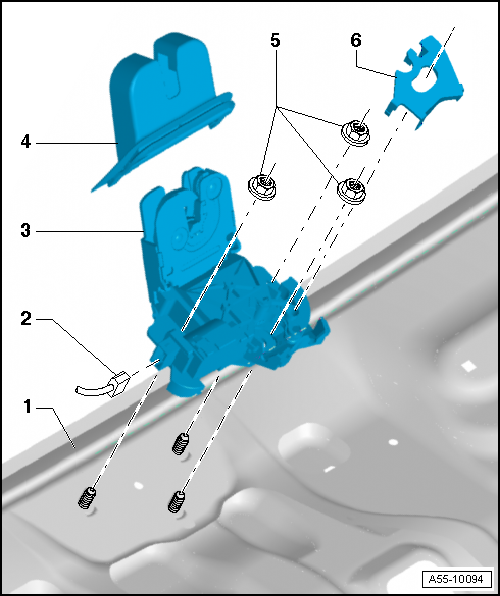

Fig 1: Rear Lid Lock Remove/Install Components
GWWA55-10094Courtesy of AUDI OF AMERICA, LLC
  1. Rear Lid
  2. Connector
  3. Rear Lid Latch
  4. Cover for Lid Lock
    • When assembling, cover must engage audibly into lid lock.
  5. Hex Nuts
    • Tightening specification: 21 Nm
  6. Anti-Theft Cover
    • When assembling, cover must engage cleanly into lid lock.
