Fuel Filler Door Insert, Installed Position

Installation Position

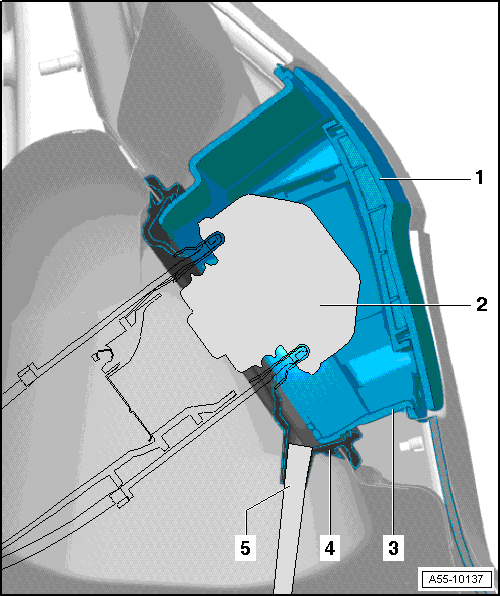

Fig 1: Fuel Filler Door Unit Overview

Courtesy of AUDI OF AMERICA, LLC

1. Fuel Filler Door
   • Can be replaced separately.
2. Tank Cap
3. Fuel Filler Door Unit
   • When installing, make sure sealing lips are seated correctly on fuel filler door cup.
4. Fuel Filler Door Cup
   • Inserted in side panel as shown.
5. Drain Hose
   • Secured to wheel housing with clip under wheel housing liner.

Panel Gap Dimensions

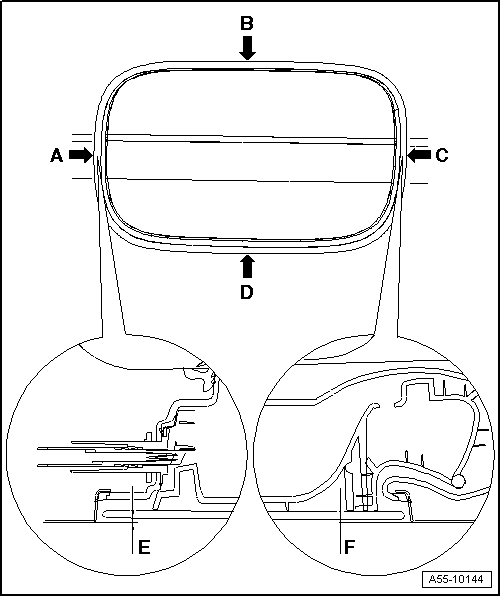

Fig 2: Fuel Filler Door Panel Gap Dimensions

Courtesy of AUDI OF AMERICA, LLC

• Dimension -a- = 2 mm
• Dimension -b- = 2 mm
• Dimension -c- = 2 mm
• Dimension -d- = 2 mm

-- Fuel filler door recess dimension -E and F- must be 0.3 mm + / - 0.25 mm at front and back.
