Rear Wheel Housing Liners, Removing And Installing

NOTE:

To remove rear wheel housing liner, it is not necessary to remove rear wheel through strong shock absorber rebound.

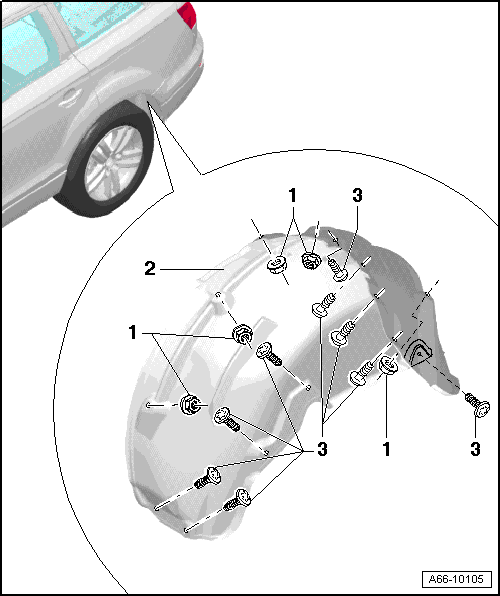

Fig 1: Rear Wheel Housing Liners
GWWA66-10105Courtesy of AUDI OF AMERICA, LLC
  1. Nut
    • 1.5 Nm
  2. Rear Wheel Housing Liner

    -- To remove, remove all screws and nuts.

    -- Remove wheel housing liner under side panel and raise over rear wheel out of wheel housing.

  3. Bolt
    • 1.5 Nm
