Spoiler Overview

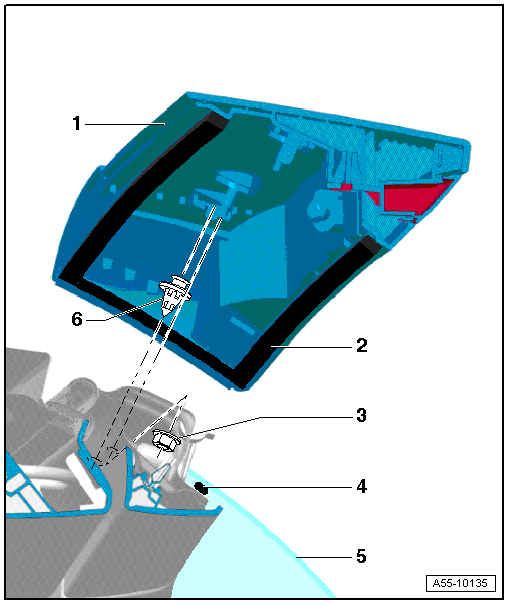

Fig 1: Identifying Rear Lid Spoiler Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

1. Spoiler
   • It is necessary to remove the rear lid trim panel first before removing the spoiler.
   • Disconnect electrical connectors to antennas or high-mounted brake light.
   • Remove nuts -3- and remove spoiler with spreader clips -6- from rear lid.
2. Sealing Band
   • Self-adhesive.
3. Nut
   • 4 Nm
4. Adhesive
5. Rear Window
6. Clip

Bolting Points

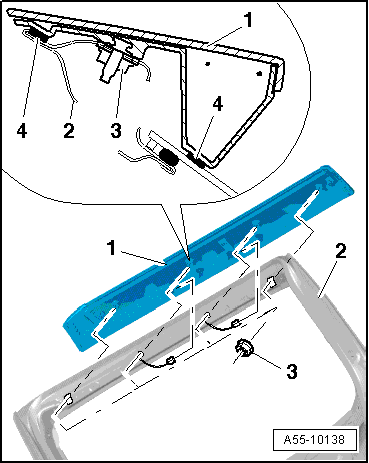

Fig 2: Identifying Rear Lid Spoiler Assembly

Courtesy of AUDI OF AMERICA, LLC

-- Before installation, connect antenna cable and brake light cable.

-- Press spoiler -1- through holes on rear lid -2- allow it to engage with clips.

-- Seal -4- must lie as shown on rear lid or rear window.

-- Tighten hex screws -3- to 4 Nm.
