Rear Wheel Spoiler Overview

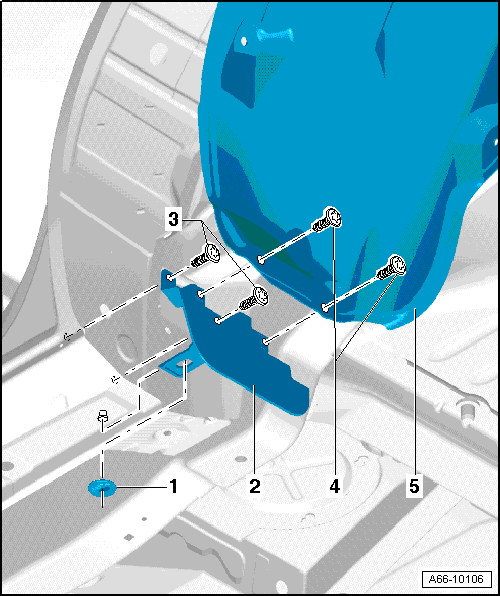

Fig 1: Identifying Rear Wheel Spoiler Assembly Overview
GWWA66-10106Courtesy of AUDI OF AMERICA, LLC
  1. Clip
    • To remove, release clip, slide it back and remove.
  2. Rear Wheel Spoiler
    • Remove screws -4-.
    • Remove screws on wheel housing liner from bottom to top in wheel spoiler area.
    • Press wheel housing liner to side, remove screws -3- and remove wheel spoiler downward.
  3. Bolt
    • 2 Nm
  4. Bolt
    • 2 Nm
  5. Rear Wheel Housing Liner
    • Remove screws on wheel housing liner from bottom to top as much as necessary so that liner can be pushed to side in order to remove screws -3-.
