Bumper Molding Overview

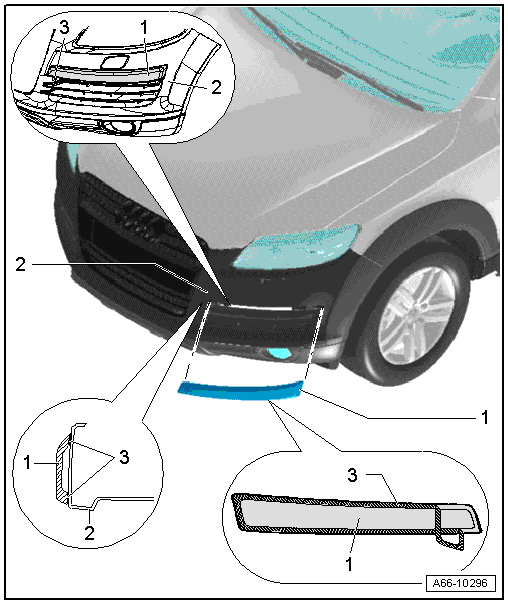

Fig 1: Identifying Bumper Molding Assembly Overview
GWWA66-10296Courtesy of AUDI OF AMERICA, LLC
  1. Protective Strip
    • Clean the adhesive surfaces.
    • Remove the protective film under the molding as illustrated.
    • Mount the molding exactly and carefully peel off the protective strip in stages.
    • Press the molding on in stages.
    • Using force, press the molding to the bumper over the entire surface.
  2. Bumper
  3. Protective Film
    • Before starting, pull of a little of the protective film and bend it back.
