Lettering Dimensions
CAUTION:
- The adhesive surfaces on the body must be free of dirt and grease.
- Clean the adhesive surfaces using Cleaning SolutionD 009 401 04.
- Warm the adhesive areas to approximately 40 °C (104 °F) using a hot air blower.
- Press the emblem with the Roller3356 after installation.
Special tools and workshop equipment required
- Roller3356

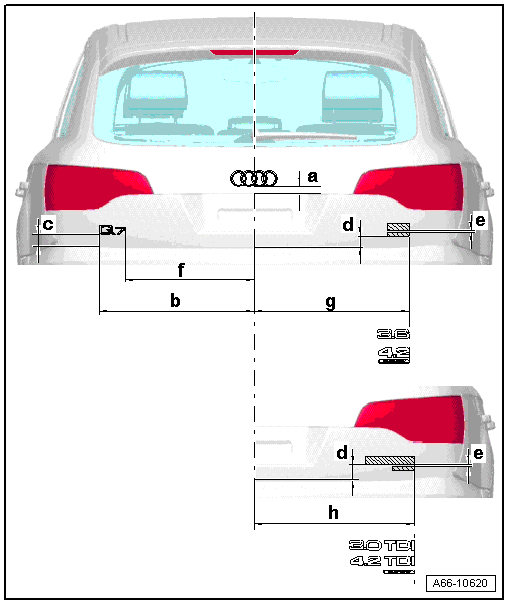

Lettering for the Rear Lid
Through MY 2009
- Dimension -a- = 30 mm
- Dimension -b- = 638 mm
- Dimension -c- = 52 mm
- Dimension -d- = 55 mm
- Dimension -e- = 4 mm
- Dimension -f- = 532 mm
- Dimension -g- = 563 mm
- Dimension -h- = 663 mm
- The dimension -h- applies to >>TDI<< vehicles
From MY 2010
- Dimension -a- = 33 mm
- Dimension -b- = 531 mm
- Dimension -c- = 82 mm
- Dimension -d- = 82 mm
- Dimension -e- = 4 mm
- Dimension -g- = 531 mm
- Dimension -h- = 531 mm

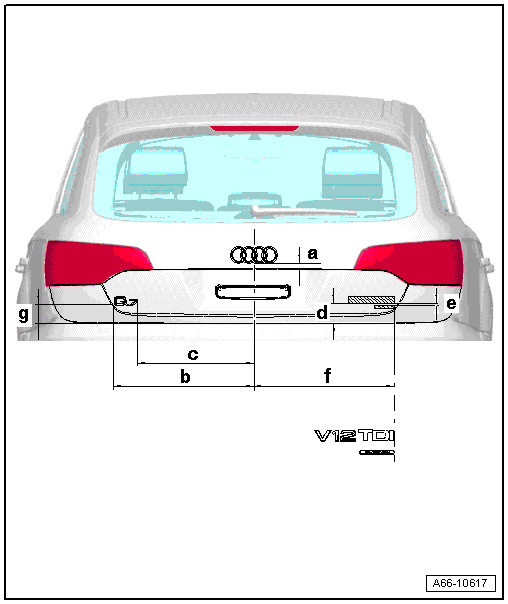

Rear lid lettering, 12-Cylinder Engine
Through MY 2009
- Dimension -a- = 25 mm
- Dimension -b- = 638mm
- Dimension -c- = 532 mm
- Dimension -d- = 55 mm
- Dimension -e- = 4 mm
- Dimension -f- = 670 mm
- Dimension -g- = 52 mm
From MY 2010
- Dimension -a- = 25 mm
- Dimension -b- = 638mm
- Dimension -c- = 532 mm
- Dimension -d- = 81 mm
- Dimension -e- = 4 mm
- Dimension -f- = 536 mm
- Dimension -g- = 82 mm

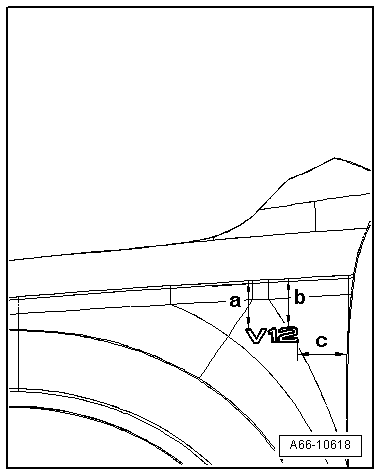

Fender Name Badge, 12-cylinder engine
- Dimension -a- = 64 mm
- Dimension -b- = 64.5 mm
- Dimension -c- = 105 mm

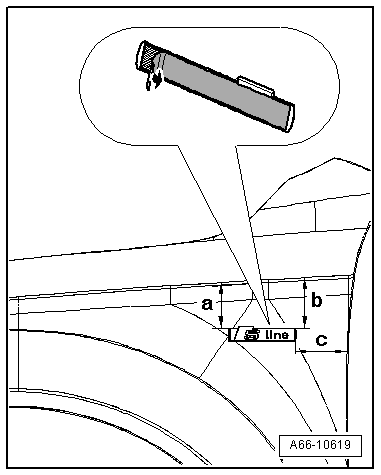

Fender Name Badge, S line
- Dimension -a- = 51.5 mm
- Dimension -b- = 52 mm
- Dimension -c- = 53 mm
