Towing Recognition Control Module -J345-, REMOVING AND INSTALLING: Removal

4-/5-Seater:

-- Remove luggage compartment left and right side trim, refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the luggage compartment floor -1- upward in direction of -arrows-.

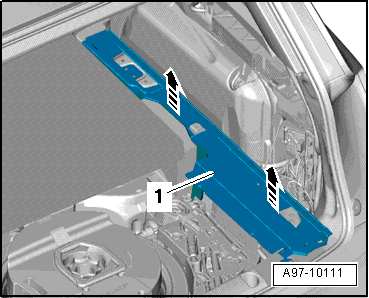

Fig 1: Identifying Luggage Compartment Cargo Floor -1-

Courtesy of AUDI OF AMERICA, LLC

6-/7-Seater:

-- Remove luggage compartment right side trim, refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

-- Remove luggage compartment floor covering -1- upward in direction of -arrows-.

Fig 2: Identifying Luggage Compartment Floor Support

Courtesy of AUDI OF AMERICA, LLC

All Vehicles:

-- Release retaining clips in direction of -arrows- and pivot Towing Recognition Control Module -J345- item -1- out of retaining frame.

-- Disconnect the connectors -2- and -3-.

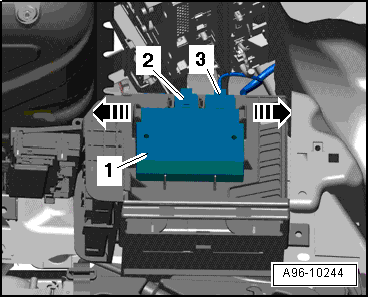

Fig 3: Releasing Retaining Clips -Arrows- And Pivoting Towing Recognition Control Module -1- Out Of Retaining Frame

Courtesy of AUDI OF AMERICA, LLC
